Radar Flow Meter
60GHz Radar Flow Meter Of Flow Meter Manufacturer In Model HRF 600S

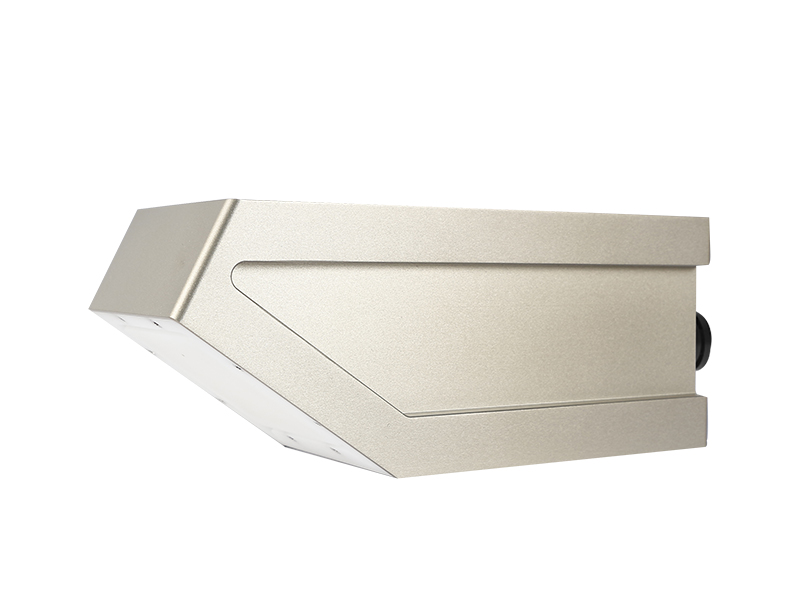

HRF600-S radar flow meter is developed based on PCR radar measurement technology. The flowmeter is made of a water level sensor, a water velocity sensor and supports wireless transmission function. The radar frequency of water level sensor can be 60GHz or 80GHz. It can not only be used in harsh environments such as acid rain, but also supports remote adjustment of equipment parameters and maintenance by mobile phones. It is the best solution for monitoring the flow or velocity of open channels, agricultural irrigation or groundwater.
Advantages
- High frequency radar can provide fast and reliable measurement results within 7 meters.
- Built-in vertical angle correction technology can be used for irregular open channels or ditches (trapezoid, round or U-shaped, etc.).
- Non-contact measurement is not affected by wind, temperature, haze, sediment or floating objects.
- Support mobile phone APP and wireless transmission function, you can easily set parameters and remote control at home.
- Optional solar power supply to avoid replacing lithium batteries.
- Anti-static,anti-surge(lightning protection) and anti-electromagnetic radiation.
Application
● Open channel flow rate or flow monitoring (Parshall trough, etc.)
● Direct drinking water flow monitoring
● Irrigation of agricultural ditches
● Industrial wastewater discharge monitoring
● Domestic sewage discharge control
| Velocity Measurement System | |
| Operating temperature | -35 to +70℃ |
| Operating Voltage | 7~32 V DC |
| IP Rating | IP68 |
| Radar Wave Velocity Meter | |
| Radar frequency | 24 GHz |
| Max measuring range | 40 m |
| Velocity range | 0.03 to 20 m/s |
| Velocity measurement accuracy | ±0.01 m/s;±2%F.S |
| Antenna angle | 12° |
| Radar Water Level Sensor | |
| Radar frequency | 80 GHz |
| Measuring range | 7 meters |
| Measurement accuracy | ±2 mm,±0.05%FS |
| Data transmission system | |
| Data transmission | RS485(acquiesce), RS232(assorting), 4-20mA(assorting), MODBUS(agreement) |

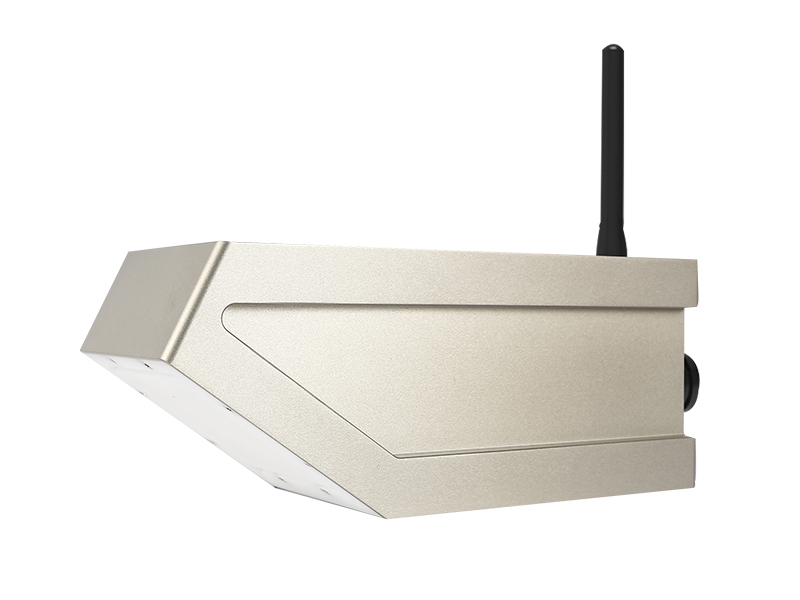

HRF600 24GHz Radar Flow Meter With Large Range
Radar flow meter is designed based on the measurement principle of frequency modulated continuous wave (FMCW). The radar frequency of the water level sensor can be 80GHz. It can not only be used in a range of 40 meters, but also can measure speed and distance. Equipped with automatic recognition of water flow direction and built-in vertical angle correction function, it can be used for water level, velocity or flow measurement of other types of water treatment such as rivers, reservoir gates or sewers.
Advantages
- 80GHz radar frequency modulated continuous wave (FMCW), and output measurement data of flow velocity, water level, and flow rate at the same time.
- Non-contact measurement and IP68 waterproof (lightning protection design), not affected by bad weather and virus factors.
- With Bluetooth parameter adjustment function, it supports mobile phone APP to wirelessly configure and maintain the device on-site.
- Optional RTU function to support remote upgrade and remote maintenance of equipment.
- Anti-static, anti-surge(lightning protection) and anti-electromagnetic radiation.
Application :
● River water level monitoring
● Reservoir flood control system
● Ecological discharge flow
● Monitoring of flow rate of agricultural water channels
● Sewage discharge control
| Velocity Measurement System | |
| Operating temperature | -35 to +70℃ |
| Operating Voltage | 7~32 V DCWith reverse voltage and over voltage protection |
| Working current | 12 V DC input, working mode: ≤35 mA standby mode: ≤1mA |
| IP Rating | IP68 |
| Lightning protection level | 6 KV |
| Radar Wave Velocity Meter | |
| Radar frequency | 24 GHz |
| Max measuring range | 40 m |
| Velocity range | 0.03 to 20 m/s |
| Velocity resolution | 1 mm/s |
| Velocity measurement accuracy | ±0.01 m/s; ±2%FS |
| Antenna angle | 12° |
| Measuring direction | Automatic recognition of water flow direction resolution ±0.1 degrees; Vertical angle correction accuracy ±1 degree |
| Radar Water Level Sensor | |
| Radar frequency | 80 GHz |
| Measuring range | 40 meters |
| Measurement accuracy | ±2 mm,±0.05%FS |
| Antenna angle | 8° |
| Data transmission system | |
| Data transmission | RS485 / RS232, 4~20mA, LoRa (wireless option), NB-IoT (wireless option), 4G RTU (wireless option) |
