Water Level Dataloggers

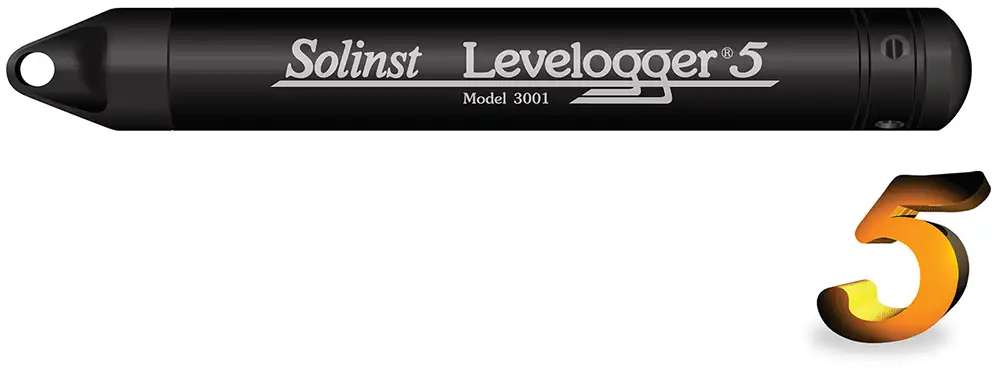

Model 3001 Levelogger 5

Solinst Levelogger 5 — the 5th generation Levelogger brings over 25 years of engineering and design experience with it. Everything about the new Levelogger 5 design focuses on providing high-quality water level data our customers can rely on, with all of the accuracy and ease of use expected from Solinst.

The Levelogger 5 is a self contained water level datalogger, using infra-red data transfer powered by a 10 year lithium battery, offering the flexibility of installing by use of a Direct Read Cable, wireline or Kevlar cord. The Levelogger 5 has a memory capacity of 150,000 temperature and water level data points.

Not Your Average Datalogger

25 Years of engineering innovation
Decades of customer experience
Deployed in 100+ countries
Thousands of customers
Millions of data points
Countless applications
Unlimited premium customer support

Our Constant Drive for Perfection

Accurate and reliable temperature compensated water level data
Optical communication interface with improved datalogger connectivity
Durable double sealed construction using high-grade 316 stainless steel with PFAS Free corrosion-resistant coating
Optimized high-speed optical communication interface with backwards compatible adaptors to work with 3rd and 4th generation Leveloggers
Increased memory capacity and faster thermal response times

Quick Access to Data In The Field

Want to connect a previous model Levelogger to a new Solinst accessory? We have an adaptor for that too.

SRU (Solinst Readout Unit) provides instant access to compensated water level data.

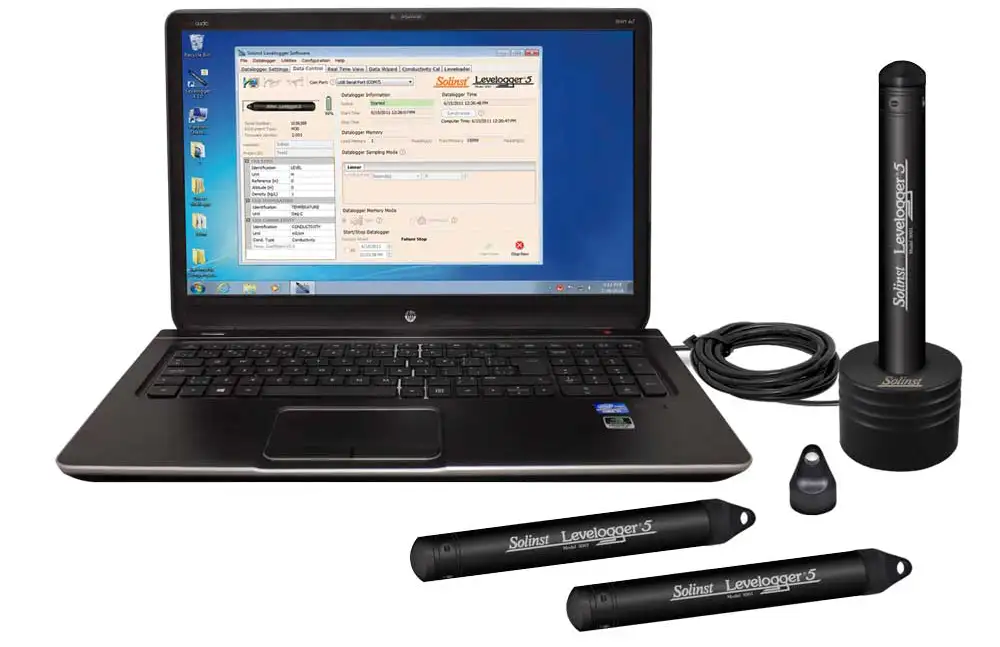

Levelogger App Interface allows you to program, and download in the field using your smart device

DataGrabber gives you simple data downloading to your USB in the field, leaving down-hole logger undisturbed

Forward & Backward Compatibility

Adaptors connect new Leveloggers to your existing direct read cables and accessories

The Levelogger 5 records highly accurate groundwater and surface water level and temperature measurements. It combines a pressure sensor, temperature detector, 10-year lithium battery,
and datalogger, sealed within a 22 mm x 160 mm (7/8″ x 6.3″) stainless steel housing with a corrosion-resistant coating baked-on using polymerization technology.

The Levelogger 5 measures absolute pressure using a Hastelloy® pressure sensor, offering high resolution and an accuracy of 0.05% FS. Readings are stable in extreme pressure and temperature conditions. The Hastelloy sensor can withstand 2 times over-pressure without permanent damage. Combined with the durable coating inside and out, the Levelogger 5 has high corrosion and abrasion resistance in harsh environments.

The Levelogger 5 uses a Faraday cage design, which protects against power surges or electrical spikes caused by lightning. Its durable maintenance-free design, high accuracy and stability, make the Levelogger 5 the most reliable instrument for long-term, continuous water level recording.

Levelogger 5 Features

Intuitive Levelogger Software: Diagnostic Utility for more proactive user “self-tests”

Highly stable communication: single-eye optical interface—easier to clean, more scratch resistant

Large memory: 150,000 sets of data

Strong, robust design: double o-ring seals for increased leakage protection

High thermistor sensitivity: accurate platinum RTD

Superior protection in harsh environments: corrosion and abrasion resistant coating—inside and out

Download (PDF)

3001 Levelogger 5 Junior

For important projects with a tight budget, Levelogger 5 Junior provides a cost-effective solution for continuous water level and temperature measurement. It is simple to program with user-friendly software, and easy to deploy with Direct Read Cables or wireline/Kevlar cord and the Levelogger Locking Well Cap. It features a Hastelloy pressure sensor, battery that lasts up to 5 years, and memory for 75,000 sets of readings. Accuracy is 0.1% FS with lifetime calibration. Levelogger 5 Junior is SDI-12 compatible, as is the higher accuracy Levelogger 5.

High Accuracy; Long Battery Life

solinst levelogger 5 water level dataloggers

The Levelogger 5 features a Hastelloy pressure sensor with 0.05% FS accuracy, 10-year battery, schedule sampling and memory for up to 150,000 sets of readings. A PFAS-free PTFE coating protects (inside and out) against corrosion, ideal for saltwater intrusion investigations.

Measure Water Level & Drawdown

4 mm (0.157″) or 10 mm (3/8″) diameter stainless steel probes
Segmented weights for flexibility
LED Light and loud buzzer indicates water level
Adjust sensitivity to suit your application

Versatile Submersible Water Level TransmitterEmpty heading

The 301 Water Level Temperature Sensor provides the option of highly accurate water level transmission using multiple protocols – MODBUS and SDI-12 – for a wide variety of applications. This compact, all-in-one submersible hydrostatic level transmitter provides continuous, stable water level and temperature readings, with options for absolute and gauged pressure sensors.

Discover Anywhere MonitoringEmpty heading

SolSat 5 is a telemetry system that leverages Iridium satellite technology to provide global connectivity for Solinst 5 Series dataloggers. It uses low cost TextAnywhere global satellite messaging to send remote data to a secure web portal. It features a robust weatherproof enclosure for installation almost anywhere. Features built-in Wi-Fi setup app, solar panel, and barometer.

Download PDF

3001 Levelogger 5 LTC

The Levelogger 5 LTC combines conductivity, pressure and temperature sensors in one compact device. It comes complete with a battery that lasts up to eight years and datalogger with memory for 100,000 sets of readings. The 4-electrode platinum conductivity sensor has autoranging from 50 to 80,000 µS/cm for maximum accuracy. A PFAS-free PTFE coating and Hastelloy pressure sensor protect the instrument from corrosion.

Level, Temperature, Conductivity

The Levelogger® 5 LTC logs water level, temperature, and conductivity. It combines a datalogger, 8-year battery, Hastelloy® pressure sensor, temperature detector, and conductivity sensor within a small waterproof housing, 22 mm x 208 mm (7/8″ x 8.2″). A baked-on coating using polymerization technology protects the body against corrosion, abrasion and high temperatures. The conductivity sensor is a 4-electrode platinum sensor, with autoranging capabilities. The minimal-maintenance, sealed Levelogger 5 LTC is simple to clean and calibrate, even in the field.

Levelogger 5 LTC Features

Superior protection in harsh conditions: baked-on coating using polymerization—inside and out

Large memory: 100,000 sets of data

Stable communication: single-eye optical, easy to clean, more scratch resistant

Strong, robust design: double o-ring seals for two times over pressurization rating

Enhanced thermistor and conductivity sensitivity: accurate platinum RTD and conductivity sensor

Download PDF

3250 LevelVent 5

The LevelVent 5 is designed to provide instantly accurate water level data, without the need for barometric compensation. If you need true water level data right on site, without running any data compensation routines, the LevelVent 5 is the right choice for your water level monitoring application.

Why the Solinst LevelVent 5 is a Great Choice:

Complete compatibility with Levelogger accessories and Solinst telemetry systems
Vented version of our popular Levelogger®
Accurate (0.05%FS) water level data
10 year battery based on 1 reading per minute
No desiccants to replace
Solinst 3 year warranty
Extremely durable vented cable
(up to 500ft length)
Custom blowout fitting for easy vented cable maintenance

Where to Use the LevelVent 5:

Ideal for deployments to 500 ft, with up to 65 ft submergence
Excellent for aquifer characterization: pumping tests, slug tests, and more
Stream gauging, lake monitoring, reservoir and dam management installations
Watershed, drainage basin and groundwater recharge monitoring
Gauged water level sensor is suited to stormwater event and runoff monitoring where rapid readings are typically required
Water supply and tank level measurement
Long-term water level monitoring in wells and surface water

The Solinst LevelVent 5 is a vented version of our popular Levelogger®. The highly accurate datalogger is designed to record water level and temperature measurements during shallow groundwater and surface water deployments.

The LevelVent 5 logger contains pressure and temperature sensors, a battery, memory for up to 150,000 data logs, and hydrophobic filter within a 22 mm x 173 mm (7/8″ x 6.8″) stainless steel housing with a corrosion-resistant coating.

The LevelVent uses a gauged pressure transducer; it is open to the atmosphere via a vented cable to the wellhead. The compact LevelVent wellhead is designed to fit in a Solinst 2″ Well Cap Assembly, and provides easy connection for communication accessories.

The vented cable and Solinst LevelVent 5 logger are protected from moisture by permanent, built-in desiccants and hydrophobic filters in the logger and the wellhead.

The vented pressure transducer is made of Hastelloy®, making it extremely durable and accurate in a wide range of temperature and monitoring conditions. The sensor provides an accuracy of 0.05% FS, and can withstand 2 times over-pressure without permanent damage.

LevelVent 5 Applications

Ideal for shallow deployment: up to 65 ft (20 m) submergence
Aquifer characterization: pumping tests, slug tests, etc.
Stream gauging, lake, reservoir and dam management
Watershed, drainage basin and recharge monitoring
Stormwater and runoff monitoring
Water supply and tank level measurement
Long-term water level monitoring in wells and surface water

Vented Datalogger Advantages

Continuous, reliable water level data for longterm monitoring projects
No barometric compensation required, saving data processing time
Instant water level data for real-time aquifer test results

LevelVent 5 Programming & Communication

The LevelVent 5 is programmed and data downloaded using Solinst Levelogger Software and a PC Interface Cable. It can also be used with the Solinst Levelogger 5 App Interface and DataGrabber 5. Both accessories and PC Interface Cable conveniently connect directly to the LevelVent 5 wellhead.

Integrate the LevelVent 5 with Solinst Telemetry Systems, which use the latest wireless technologies. The LevelVent is also compatible with SDI-12 and MODBUS networks by use of a Solinst SDI-12/MODBUS Interface Cable.

For deeper, hard to access applications, or areas that are prone to flooding, the Levelogger 5 Series of absolute pressure water level dataloggers are also options (see Model 3001 Levelogger 5 Series Data Sheet).

LevelVent 5 Features

Built-in hydrophobic filters and desiccants — no need to replace, reduces maintenancedes consistently accurate measurements in wells, boreholes, and cascading water, with almost zero displacement.

Corrosion and abrasion-resistant coating baked on using polymerization technology

Gauged pressure sensor for highly-accurate water level measurements: 0.05% FS

Compact wellhead makes deployment simple using a Solinst 2″ Well Cap Assembly

Communication cables and accessories connect directly to the wellhead

Long-lasting battery included in logger

Download PDF
