MALÅ MIRA Compact
3D GPR mapping in a compact format
MALÅ 3D Imaging Radar Array (MIRA) is a high-speed, one-pass 3D GPR system and the most effective solution for large-area GPR mapping.
MIRA Compact includes our world-renowned MALÅ HDR (High Dynamic Range) real-time sampling technology providing ultra-fast measurements and razor sharp data. The solution seamlessly integrates acquisition, processing, QA/QC, positioning and interpretation of ground penetrating radar data.
Large area 3D mapping

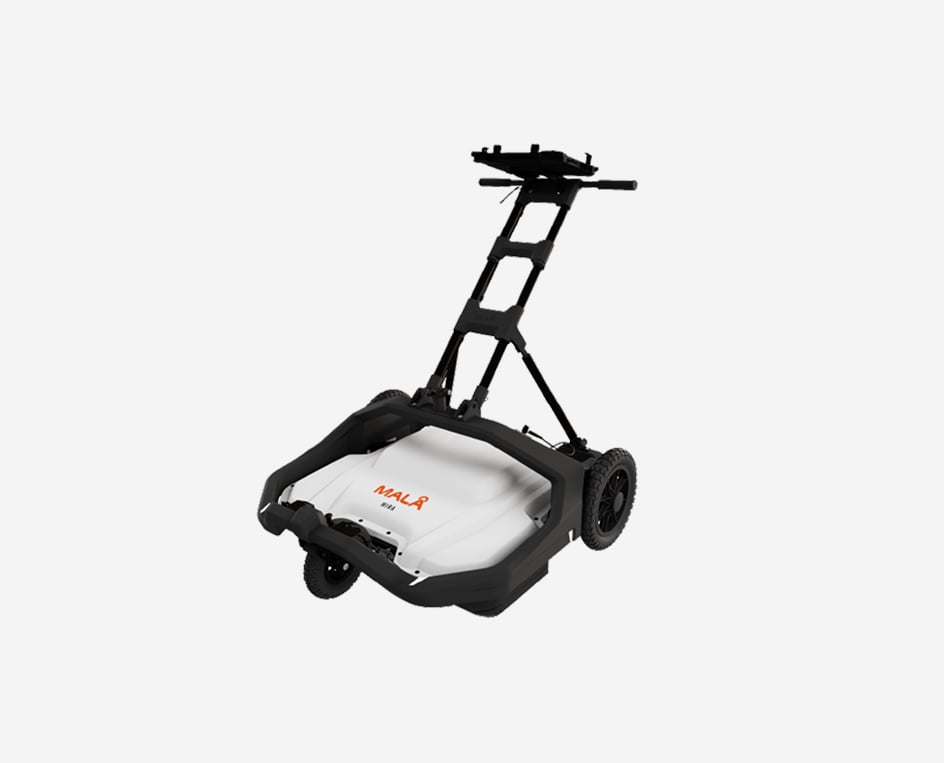

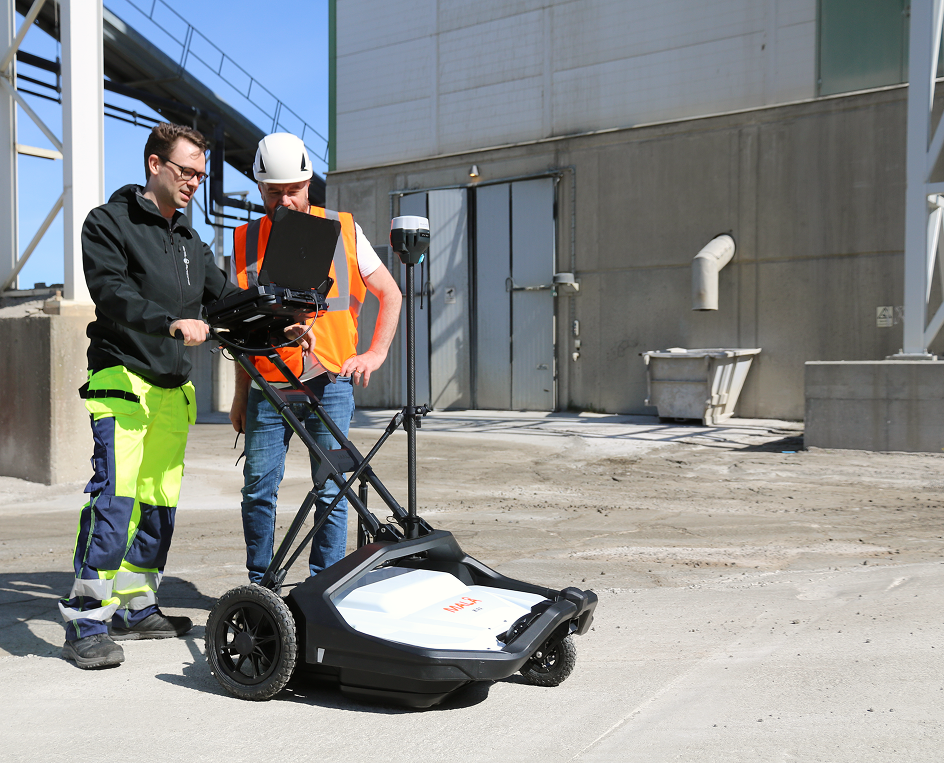

With the highest data-channel density on the market MALÅ MIRA Compact delivers unsurpassed resolution. The MALÅ MIRA Compact produces data with less noise, at higher speeds, with more functionality using improved mechanical design and modern software. The MIRA Compact is a hand-pushed, flexible and cost-effective 3D GPR solution, optimized for 3D mapping of buried objects and artefacts.
Up to 30 data channels
The MIRA Compact GPR array uses a 500 MHz centre frequency, The system is normally set up to collect 10 parallel data channels but the system is capable of collecting up to 30 data channels simultaneously since it allows data collection from any transmitter-receiver combination in the whole array.
MIRA Compact delivers 32-bit output, producing exceptional data quality, even at high speed surveys. The 6.5 cm channel spacing allows for the collection of precise, high resolution data.
MALÅ HDR GPR
The MALÅ MIRA Compact has been designed to take full advantage of the MALÅ HDR technology, giving you the best possible GPR data quality, resolution and bandwidth .

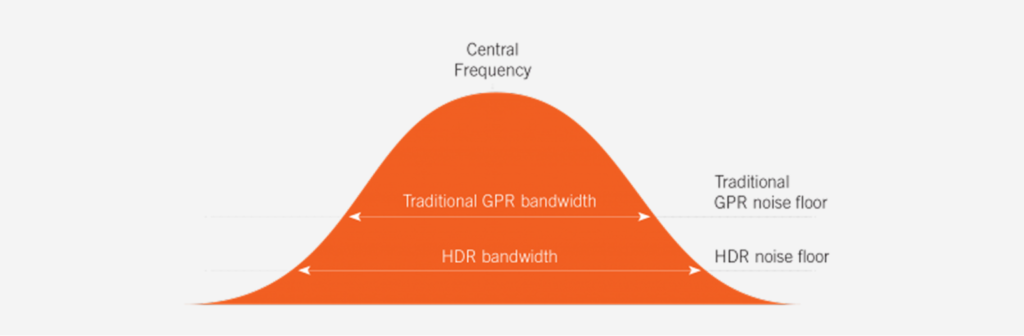

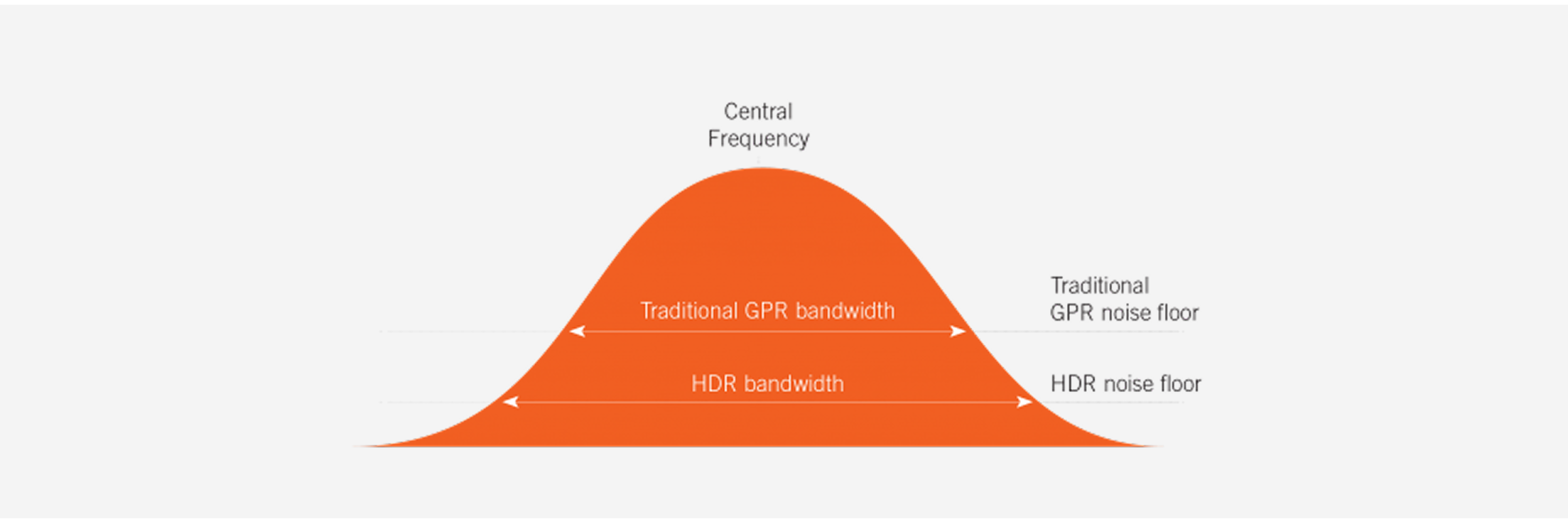

The MALÅ HDR, real-time sampling technology produces data with significantly lower noise levels, compared to traditional GPR systems. A lower noise floor gives a wider bandwidth when compared to conventional time-interleaved systems. This removes more of the background interference, giving sharper data with higher contrast, and the ability to see deeper than non-HDR systems.
MIRA Compact delivers 32-bit output, producing exceptional data quality, even at high speed surveys. The 6.5 cm channel spacing allows for the collection of precise, high resolution data.
Software: MIRA Controller

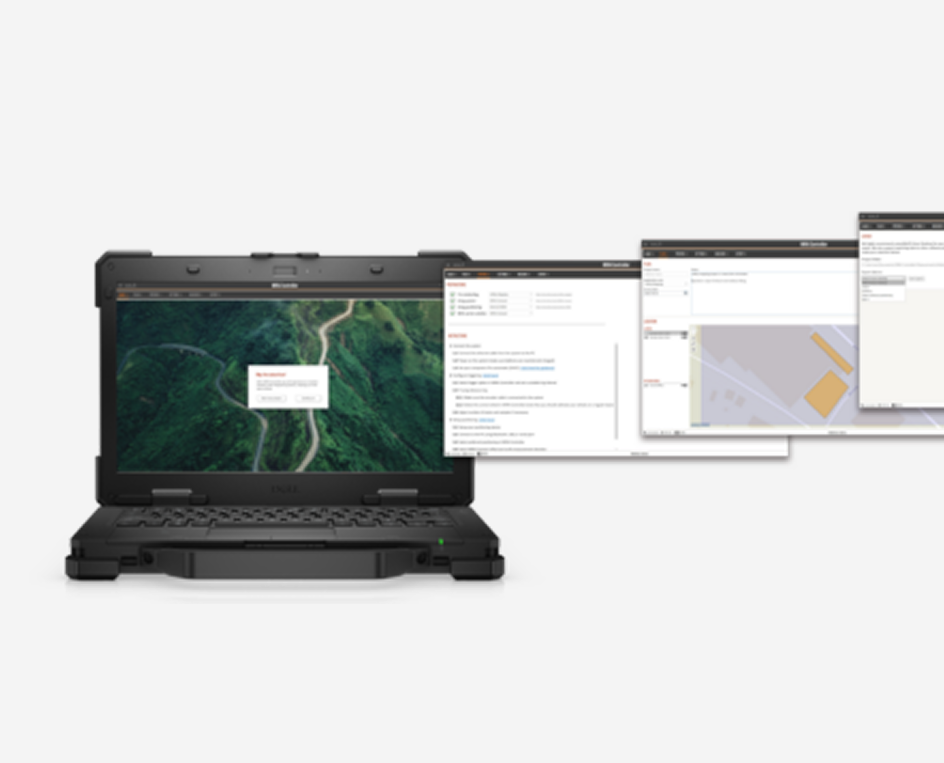

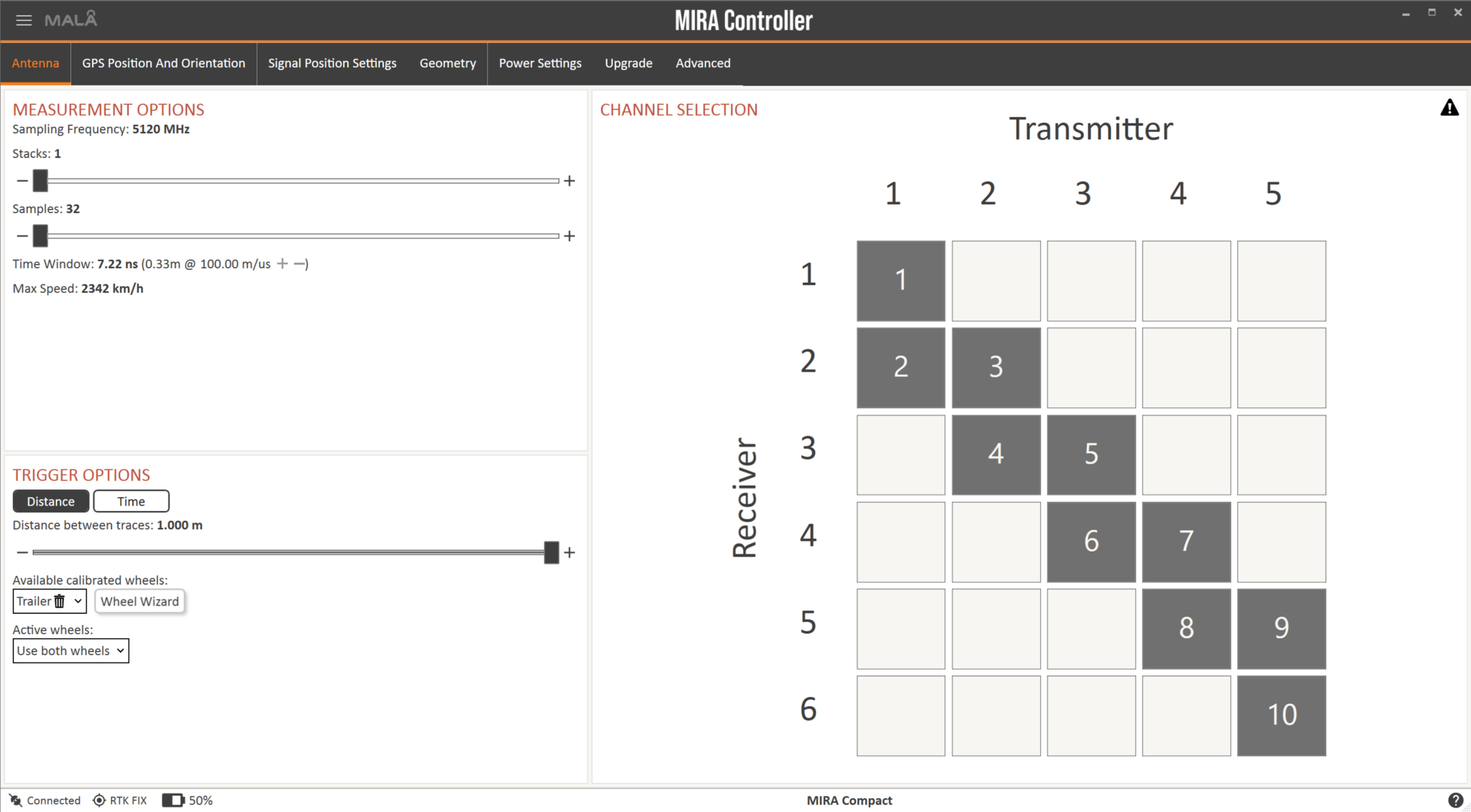

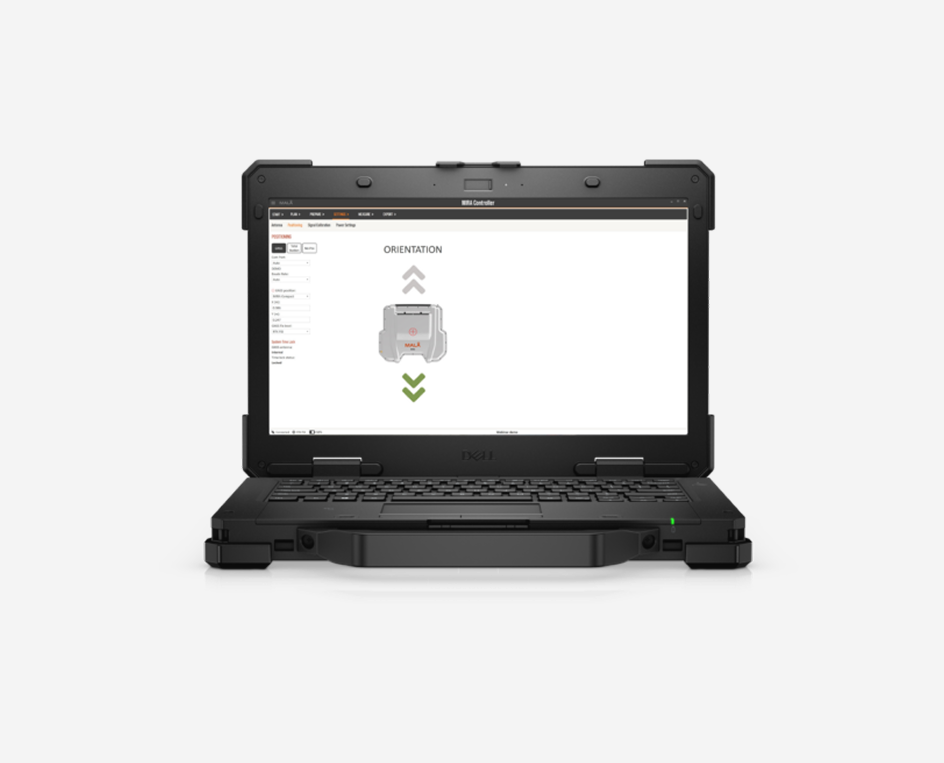

With the new MIRA Controller acquisition software, you will experience a modern and easy-to-use interface with integrated navigation aids helping you to maximize the quality of your measurements. MIRA Controller tracks the performance and data collection in detail helping you to maintain the correct speed and course.
Data processing: MALÅ Vision Desktop
MALÅ Vision Desktop is a fast, intuitive software for processing, analyzing, and reporting 3D GPR array data from MALÅ MIRA systems. Optimized for large datasets, it offers immediate visual feedback, multiple viewing modes (map, 2D, and 3D), and industry-leading proprietary interpolation.
Running fully offline, the software delivers results in minutes rather than hours. Automated processing, efficient depth-slice generation, and straightforward export to standard industry formats make reporting fast and reliable.
MIRA Compact Tow Hitch Carrier

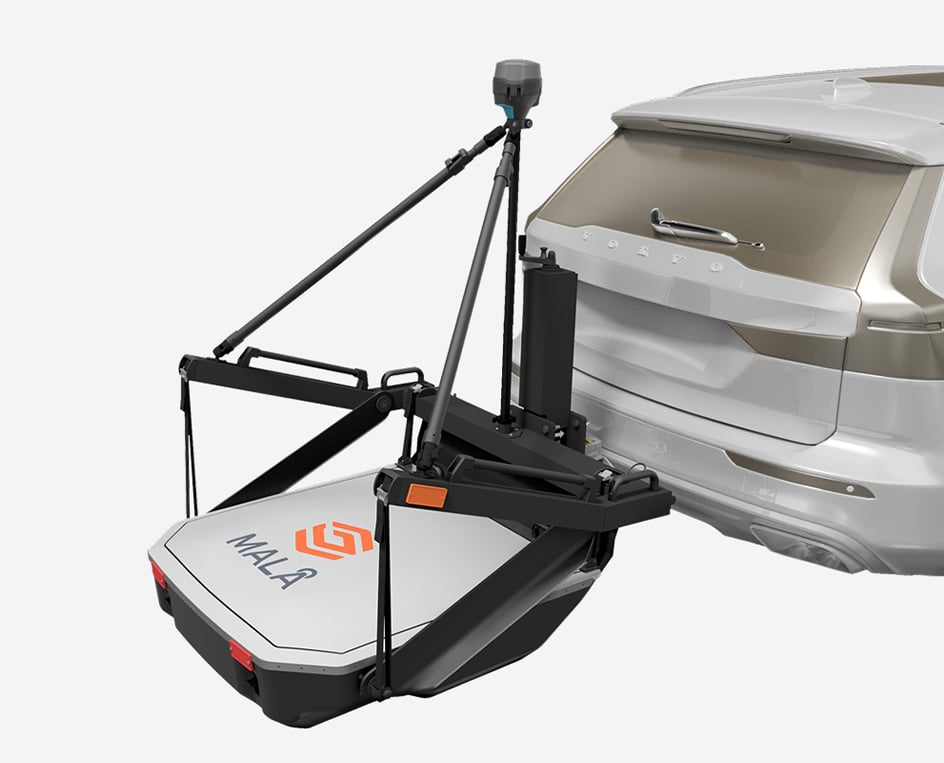

The MIRA Compact Tow Hitch Carrier transforms your trusted MIRA Compact into a powerful motorized survey solution. Designed to mount directly onto the tow ball of cars, pick-up trucks, quad bikes, and ATVs, the MIRA Compact Tow Hitch Carrier lets you cover more ground in less time – from quiet farmlands to busy highways.
The MIRA Compact Tow Hitch Carrier offers three versatile survey modes:
- Transport Mode – secured for travel to and from the survey site
- Floating Survey Mode – survey with the antenna in full contact with the ground for unmatched data quality, suitable for farmland and grass areas
- Fixed Survey Height Mode – keep the antenna at a fixed height above the ground for high-speed surveys over hard surfaces, such as asphalt or gravel
The MIRA Compact Tow Hitch Carrier includes an integrated GNSS pole with sturdy support arms for mounting GNSS antennas or total station prisms, ensuring precise positioning in any environment.

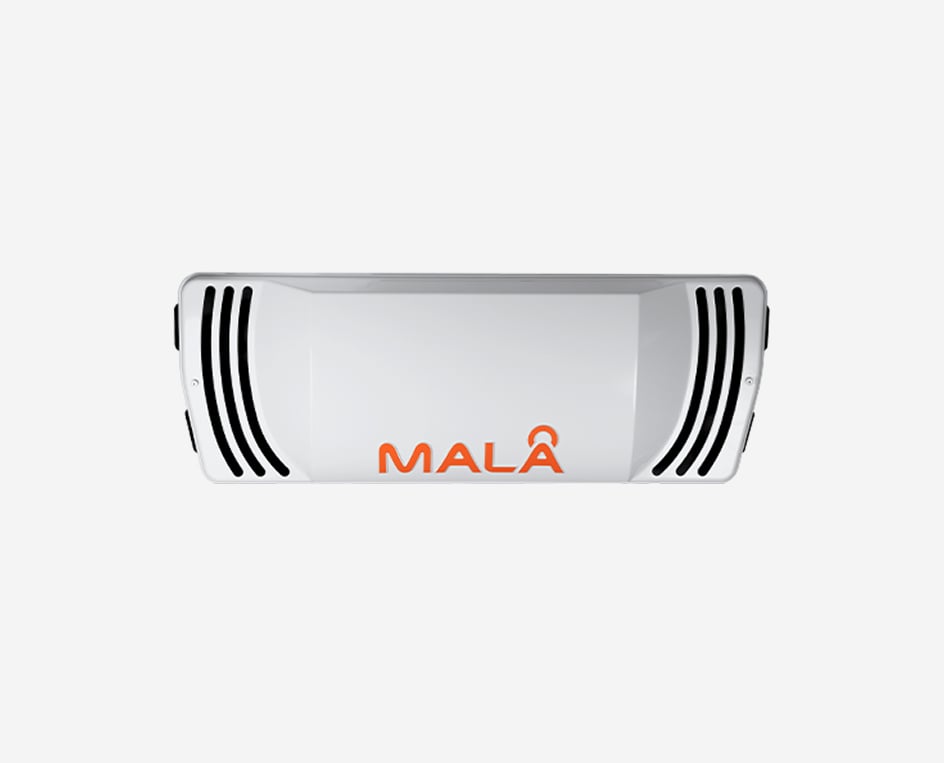

MALÅ MIRA HDR
Large-scale 3D GPR mapping. Multiple carrier solutions for maximum operational flexibility.
MALÅ 3D Imaging Radar Array (MIRA) is a high-speed, one-pass 3D GPR system and the most effective solution for large-area GPR mapping.
MIRA HDR includes our world-renowned MALÅ HDR real-time sampling technology providing ultra-fast measurements and razor sharp data. The solution seamlessly integrates acquisition, processing, QA/QC, positioning and interpretation of ground penetrating radar data.
Large Area Mapping
With the highest data-channel density on the market MALÅ MIRA HDR delivers unsurpassed class-leading resolution. The MALÅ MIRA HDR produces data with less noise, at higher speeds, with more functionality using improved mechanical design and modern software. The MIRA HDR is a cost-effective 3D GPR array, optimized for mapping large areas to locate buried objects and artefacts.
132 data channels

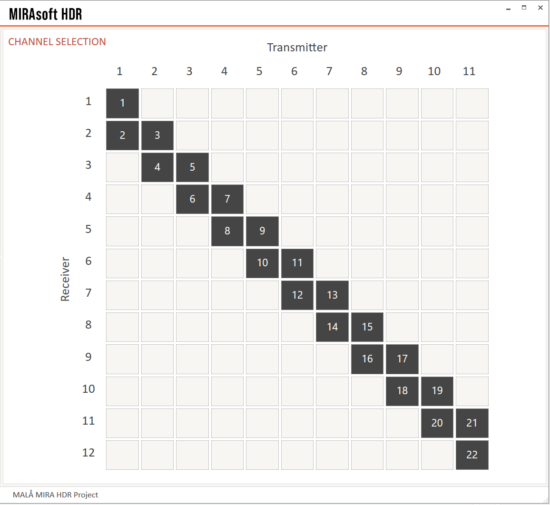

In standard configuration the MIRA HDR 3D GPR array uses a 500 MHz centre frequency, 11 transmitters and 12 receivers. The system is normally set up to collect 22 data channels but the system is capable of collecting up to 132 data channels simultaneously since it allows data collection from any transmitter-receiver combination in the whole array.
MIRA HDR delivers 32-bit output even at highway speeds, producing exceptional data quality. The 6.5 cm channel spacing, allows for the collection of precise, high resolution data.
MALÅ HDR (High Dynamic Range) GPR
The MALÅ MIRA has been redesigned to take full advantage of the MALÅ HDR technology, giving you the best possible GPR data quality, resolution, bandwidth .
The MALÅ HDR technology produces data with significantly lower noise levels, compared to traditional GPR systems. A lower noise floor gives a wider bandwidth when compared to conventional time-interleaved systems. This removes more of the background interference, giving sharper data with higher contrast, and the ability to see deeper than non-HDR systems.
MALÅ carrier solutions
There are several different types of carrier solutions for the MALÅ MIRA HDR. Some are intended to be pushed and other to be pulled and all carrier options have specific advantages for certain types of field work. Guideline Geo is continuously listening to our customers to help modify existing solutions to specific needs but the four official carrier solution available for the MIRA HDR today are:

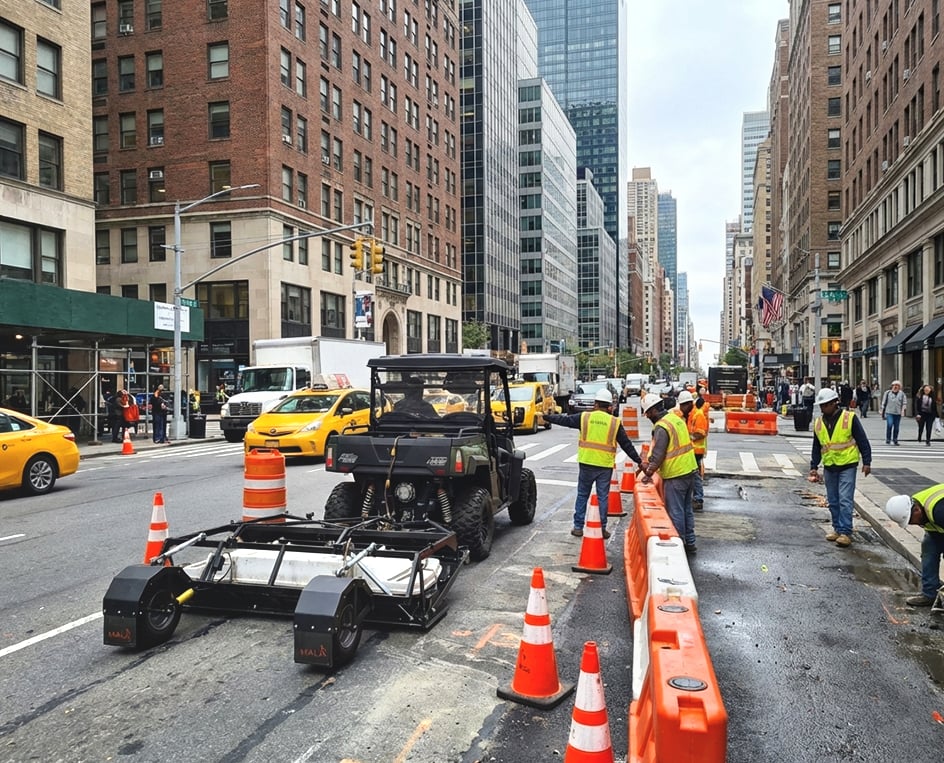

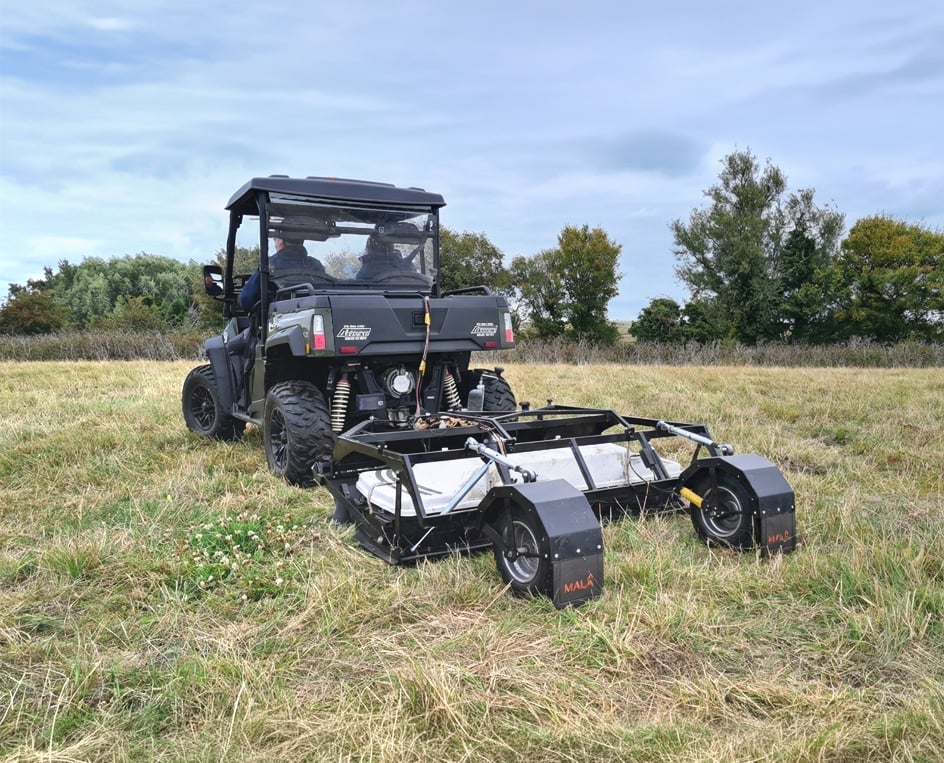

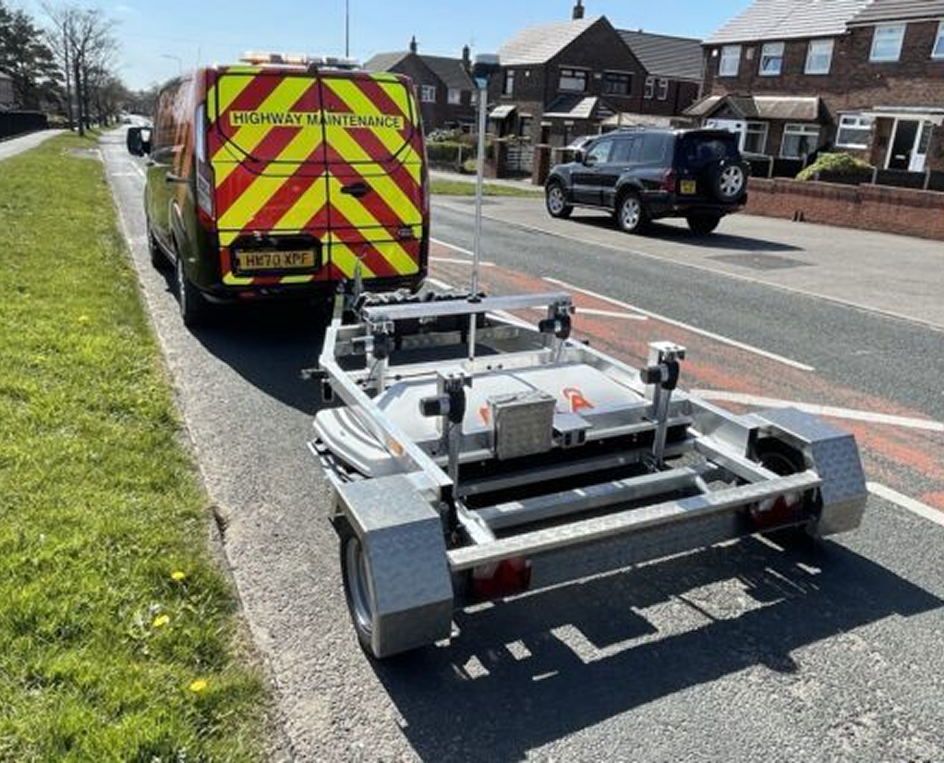

- MIRA HDR Field trailer

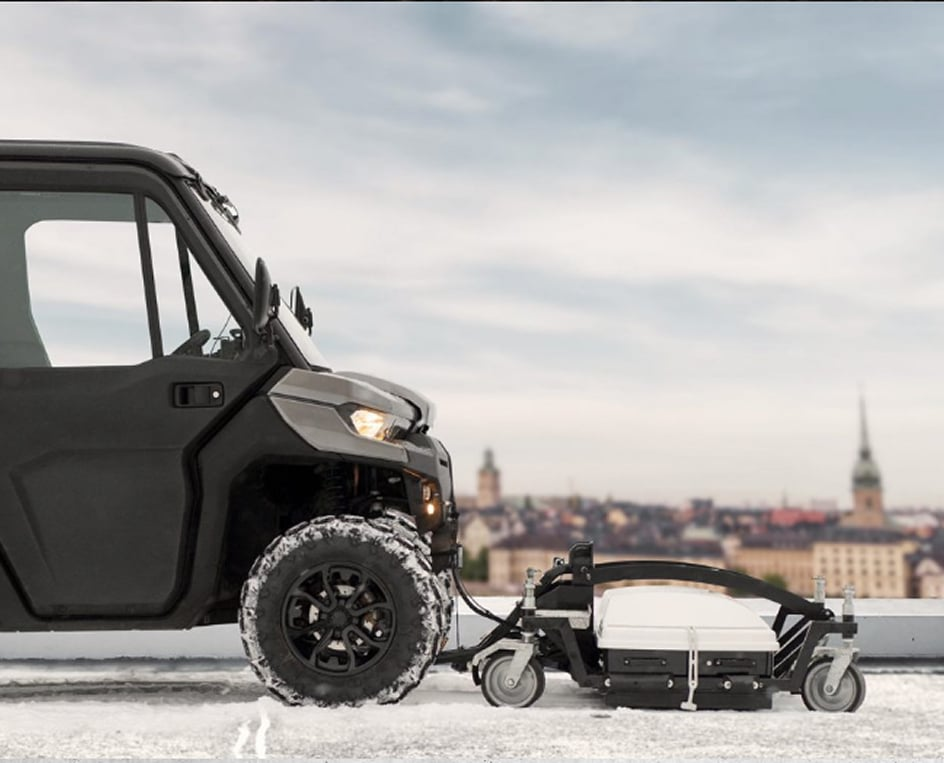

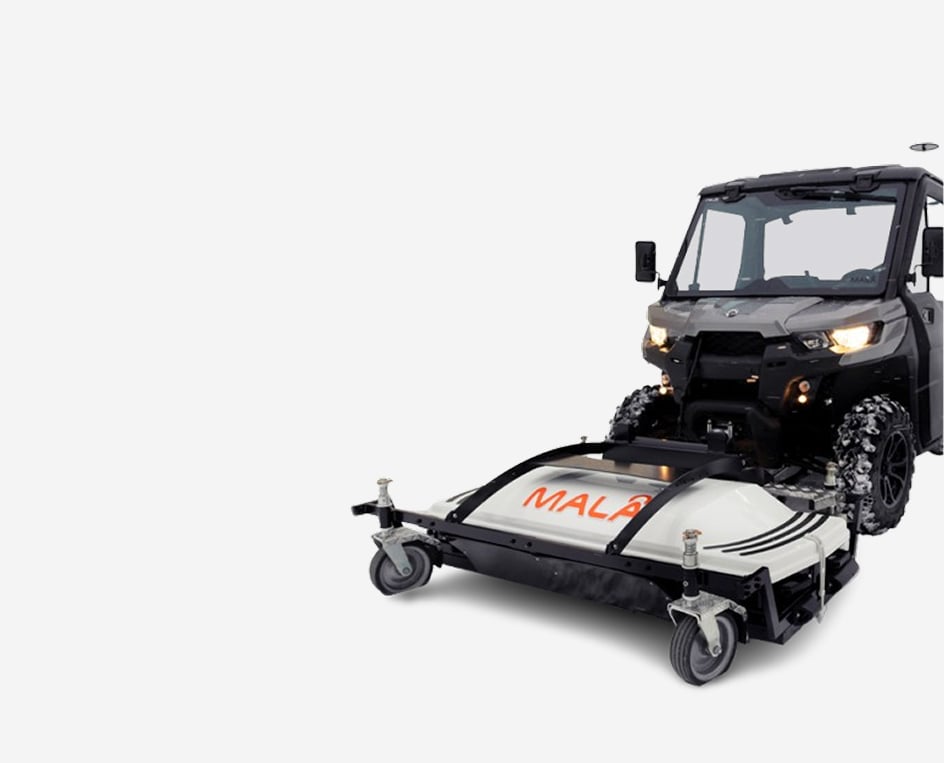

- MIRA HDR Front-mounted
Software
With the MIRA Controller acquisition software, you will experience a modern and easy-to-use interface with integrated navigation aids helping you to maximize the quality of your measurements. MIRA Controller tracks the performance and data collection in detail helping you to maintain the correct speed and course.
MIRA Controller can also be used to view and edit previous projects; it exports to several formats for integration with other software packages.
MALÅ MIRA Flex

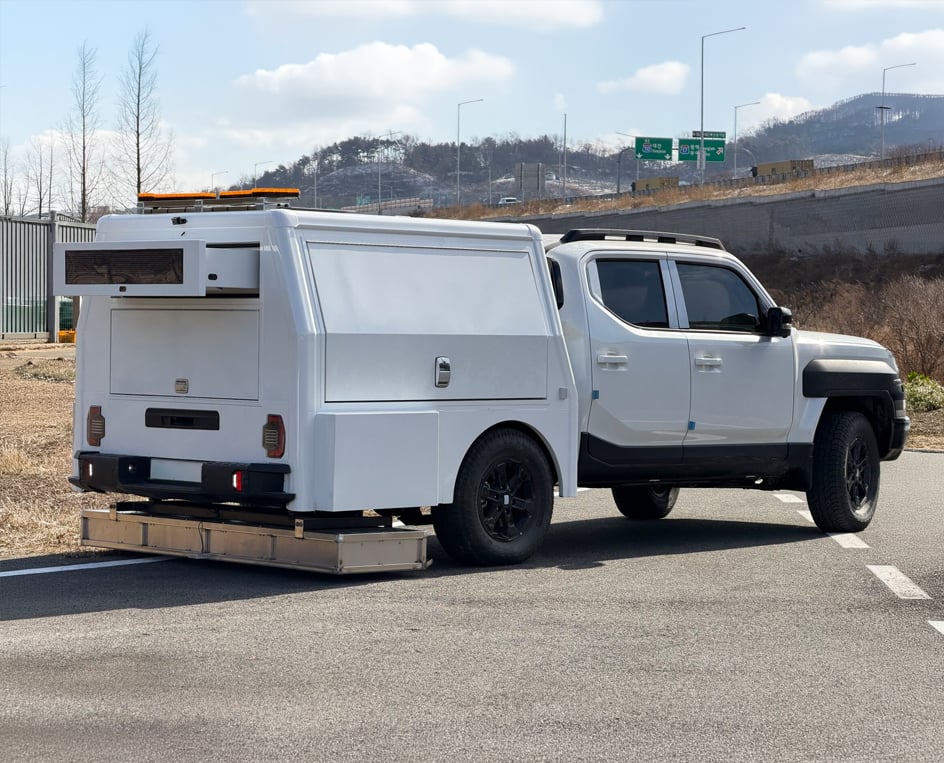

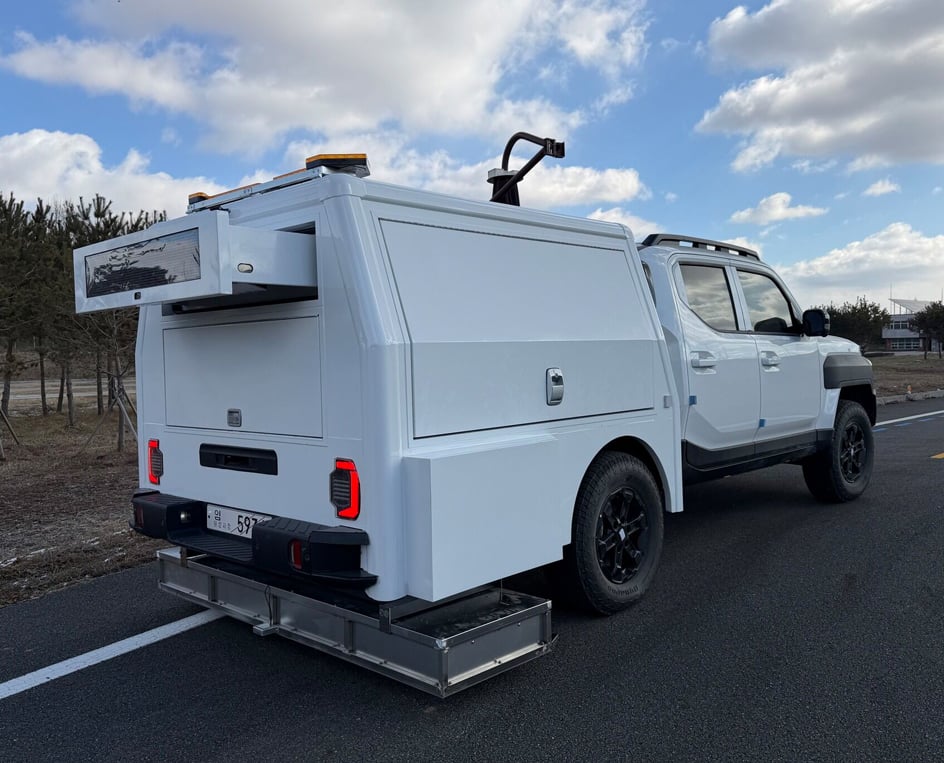

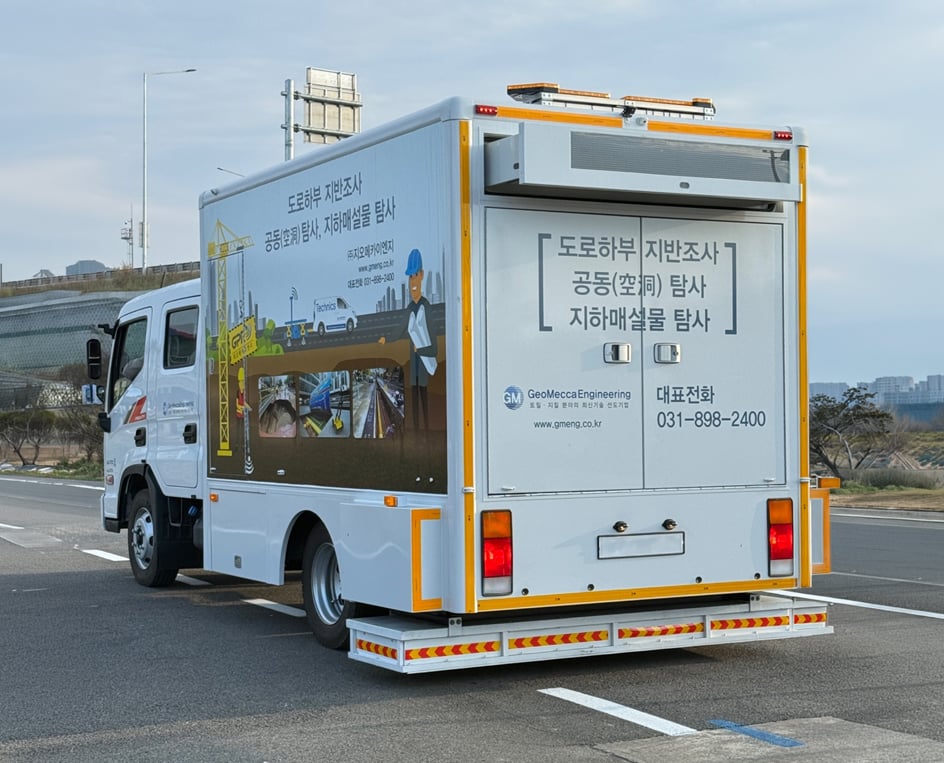

A modular, custom-built 3D ground-penetrating radar (GPR) array, only offered for integration into tailored solutions and specialized platforms.

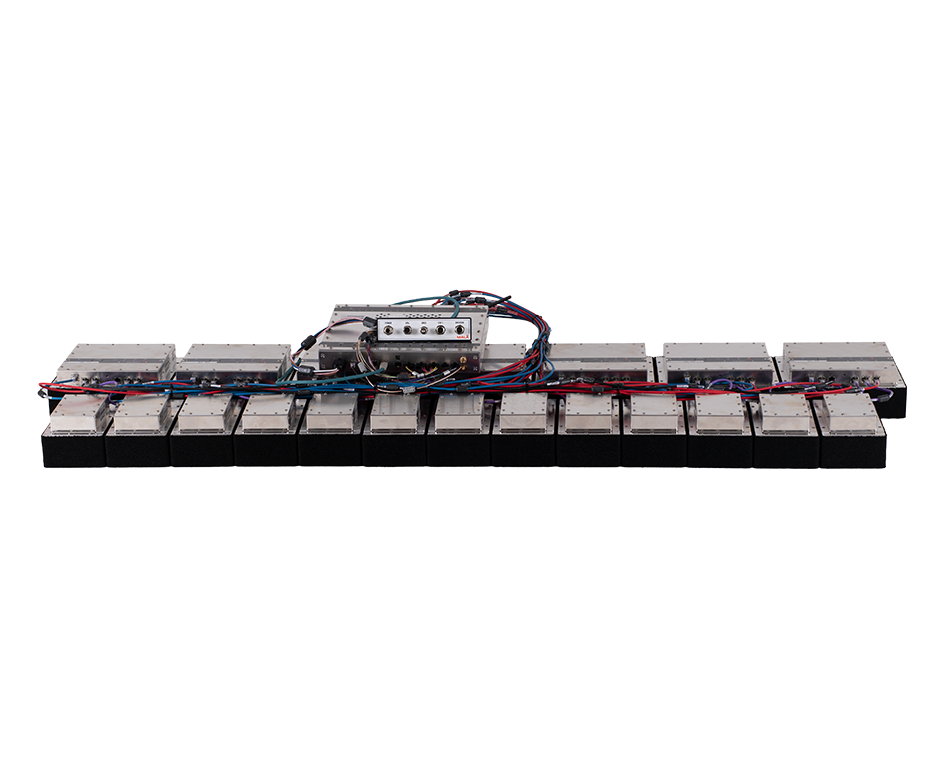

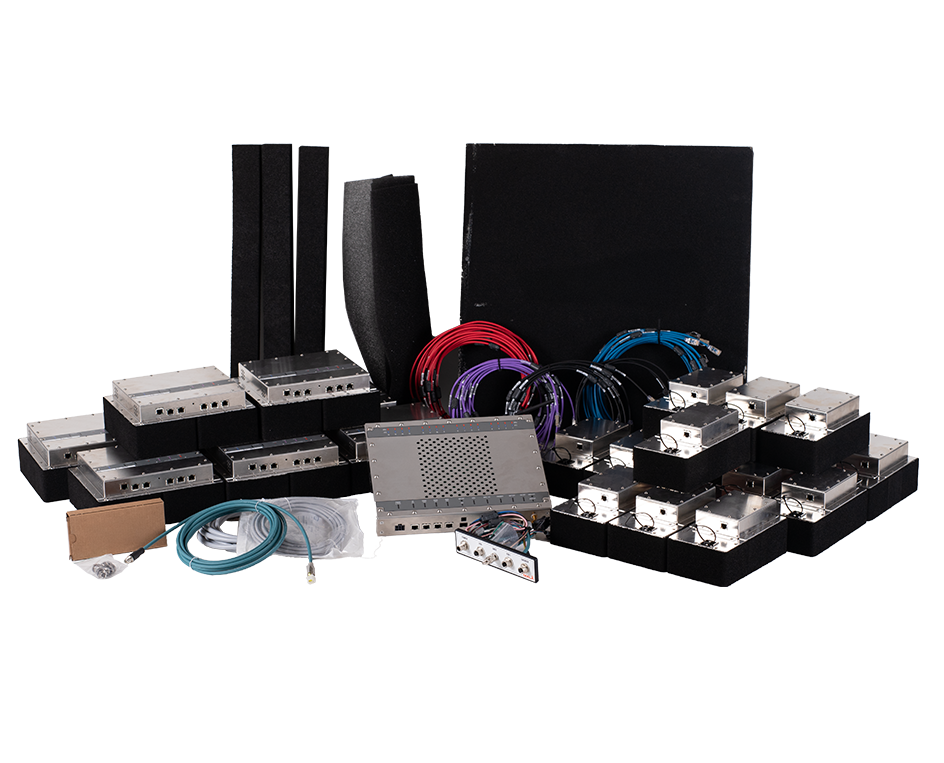

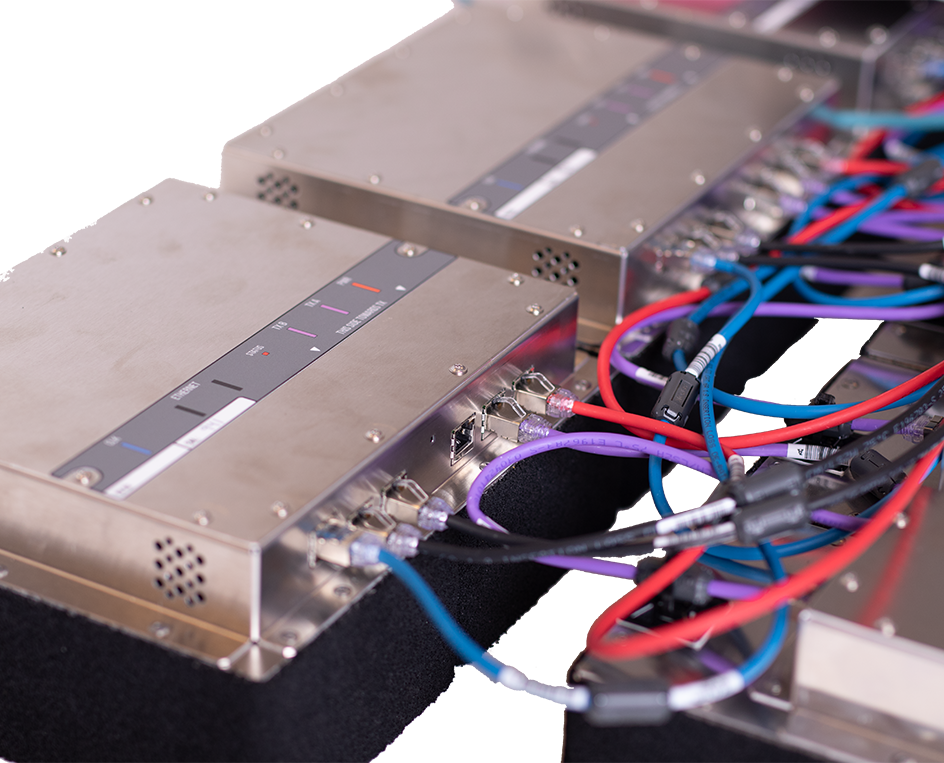

MALÅ MIRA Flex is a modular, custom-built 3D ground-penetrating radar (GPR) array solution designed for integration into specialized systems and applications. Built on the proven MIRA platform – delivering high-quality 3D GPR data for more than two decades – MIRA Flex enables tailored configurations for qualified customers and partners.
With MIRA Flex, Guideline Geo can offer customized MIRA solutions for applications where standard systems such as MIRA Compact or MIRA HDR are not sufficient. The system is designed for customers who require a specific array scan width, typically between 1–4 meters, and who plan to integrate the technology into their own platforms or solutions.
Large Area Mapping
With potential for the highest data-channel density on the market MALÅ MIRA Flex delivers unsurpassed class-leading resolution. Any MALÅ MIRA-system produces data with less noise, at higher speeds, with more functionality using improved mechanical design and modern software.
Swath width between 0.25 and 4 m (1-13 ft)
The MIRA HDR 3D GPR array uses a 500 MHz centre frequency and supports a variety of trig options, including MALÅ Motion and time trig*. The system can collect between 2 and 62 true data channels with up to 4 m swath width, maintaining MALÅ MIRA high data channel density.
*customized encoder solutions are also available.
MALÅ HDR (High Dynamic Range) GPR
The MALÅ MIRA has been redesigned to take full advantage of the MALÅ HDR technology, giving you the best possible GPR data quality, resolution, bandwidth .
The MALÅ HDR technology produces data with significantly lower noise levels, compared to traditional GPR systems. A lower noise floor gives a wider bandwidth when compared to conventional time-interleaved systems. This removes more of the background interference, giving sharper data with higher contrast, and the ability to see deeper than non-HDR systems.
Software
Software is an essential part of every MALÅ MIRA solution. MIRA Controller and MALÅ Vision Desktop are purpose-built to work seamlessly with MIRA hardware, guiding users from survey planning to final reporting with ease and efficiency.
MALÅ MIRA Controller is the dedicated data acquisition software for MIRA HDR, MIRA Compact, and custom MIRA-based antenna solutions (like the MALÅ MIRA Flex). It provides an intuitive interface for data collection, channel and file management, and real-time guidance using multiple positioning options. Projects are easily transferred to MALÅ Vision Desktop for processing and interpretation.
MALÅ Vision Desktop is a fast, intuitive software for processing, analyzing, and reporting 3D GPR array data from MALÅ MIRA systems. Optimized for large datasets, it offers immediate visual feedback, multiple viewing modes (map, 2D, and 3D), and industry-leading proprietary interpolation.
Running fully offline, the software delivers results in minutes rather than hours. Automated processing, efficient depth-slice generation, and straightforward export to standard industry formats make reporting fast and reliable.

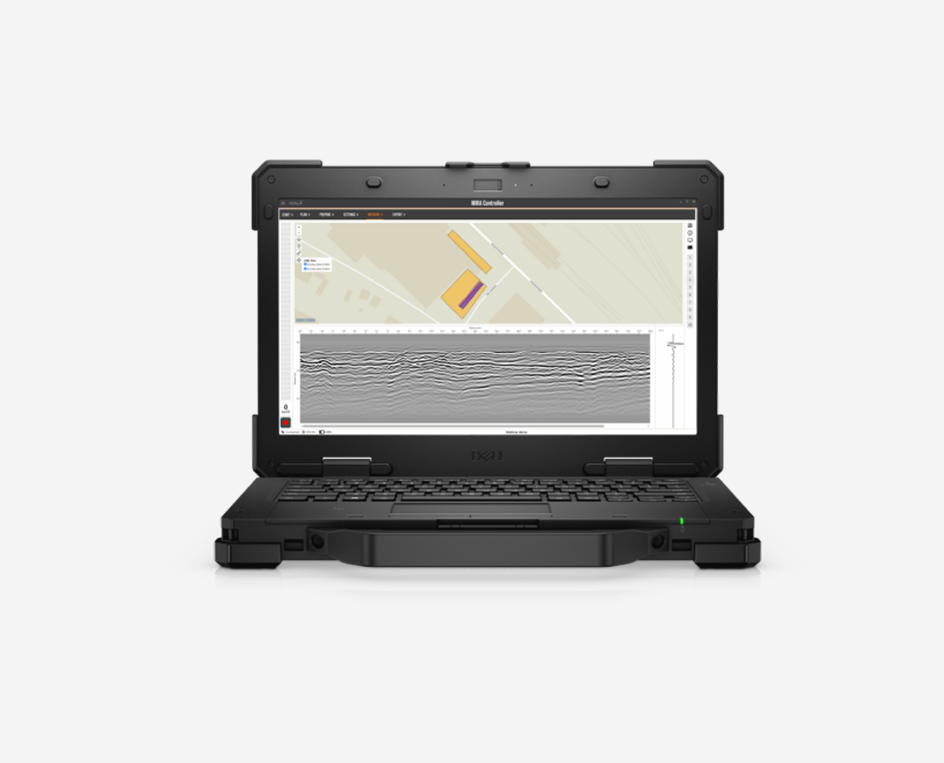

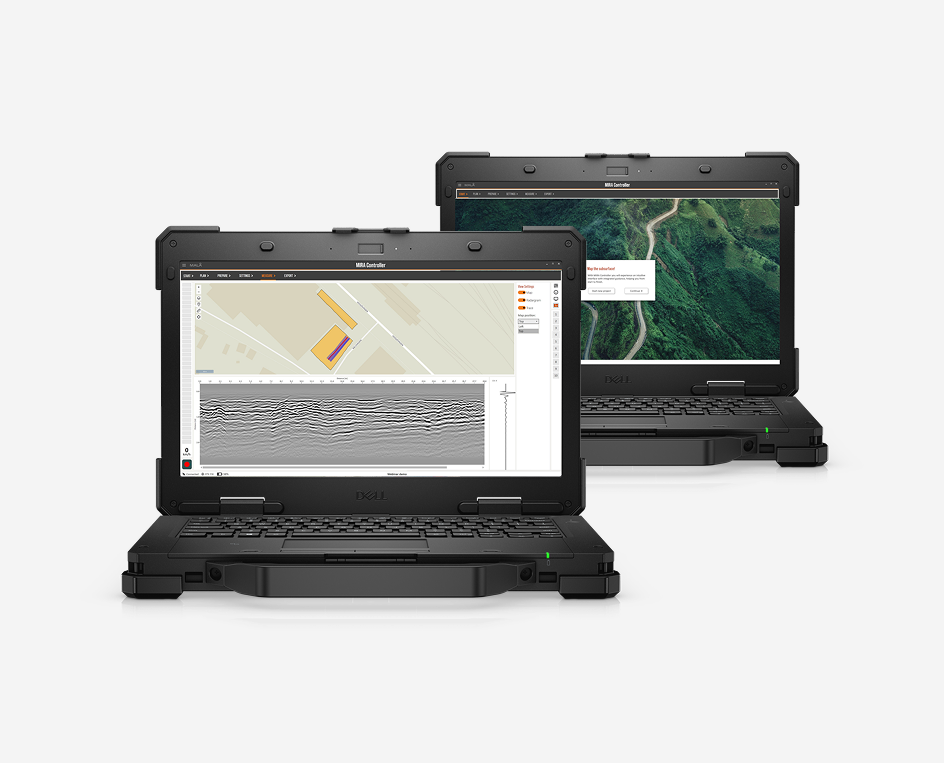

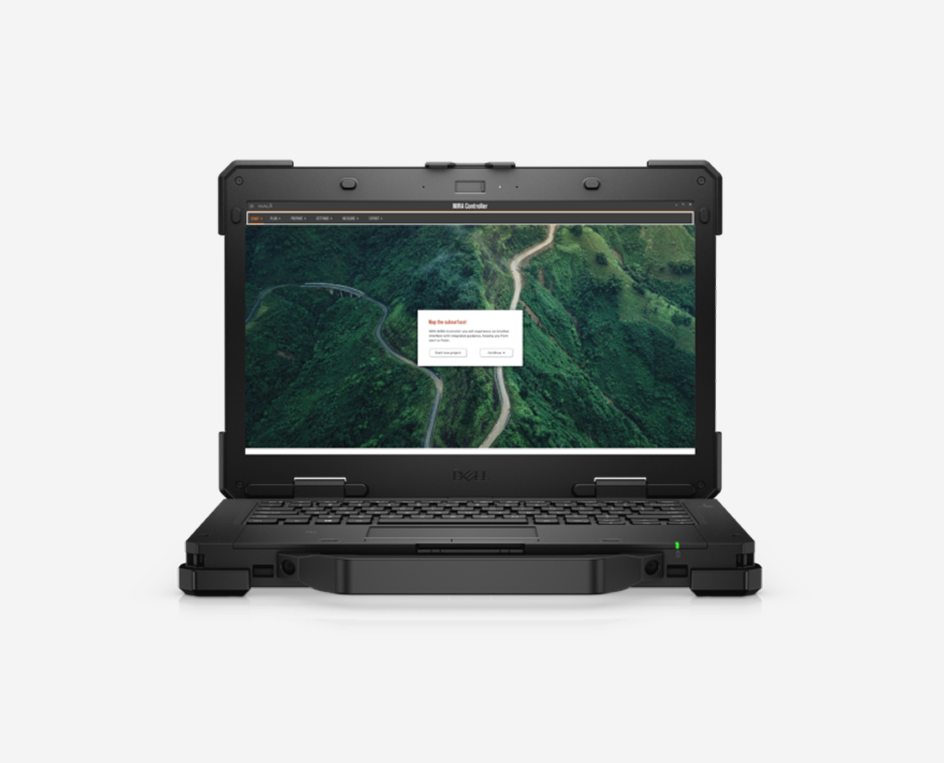

MALÅ MIRA Controller
MALÅ MIRA acquisition software

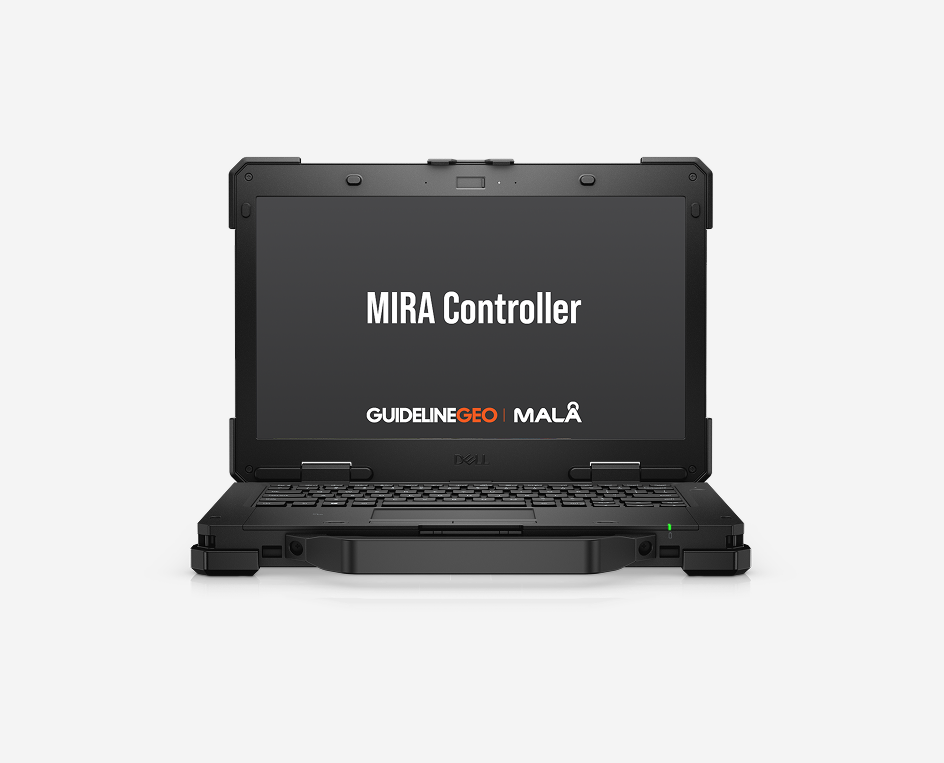

MIRA Controller is acquisition software optimized for collection of GPR array data from MALÅ MIRA HDR and MIRA Compact. The software replaces MALÅ MIRAsoft HDR.
Feature Summary
- Software structure and workflow optimized for GPR array data collection
- Aligned appearance with MALÅ Controller App and MALÅ Vision
- Works with MIRA Compact and MIRA HDR
- Dynamic measurement view
- Map measurement tools
- KML/KMZ support
- Built in guidance from start to finish
- Depth slicer
Positioning
- Easy setup regardless of positioning solution used
- Supports major brands of RTK GNSS and Total Station
- Efficient offset handling
- Interactive interface
Dynamic View
- Customizable acquisition view
- Organize your workspace according to your needs
- View data, maps, location and trace
- Add display filters that won’t affect raw data
- Velocity control
Map Features
- Satellite, vector and off-line maps supported
- KML/KMZ file support
- Measurement tools
- Measure the size or perimeter of your survey area
- Shapefile support
- Points, polylines and polygons information support
Built-in Guidance
- Help to setup, prepare and conduct mesasurements
- Pre-set configurations
- Online help
Depth Slicer

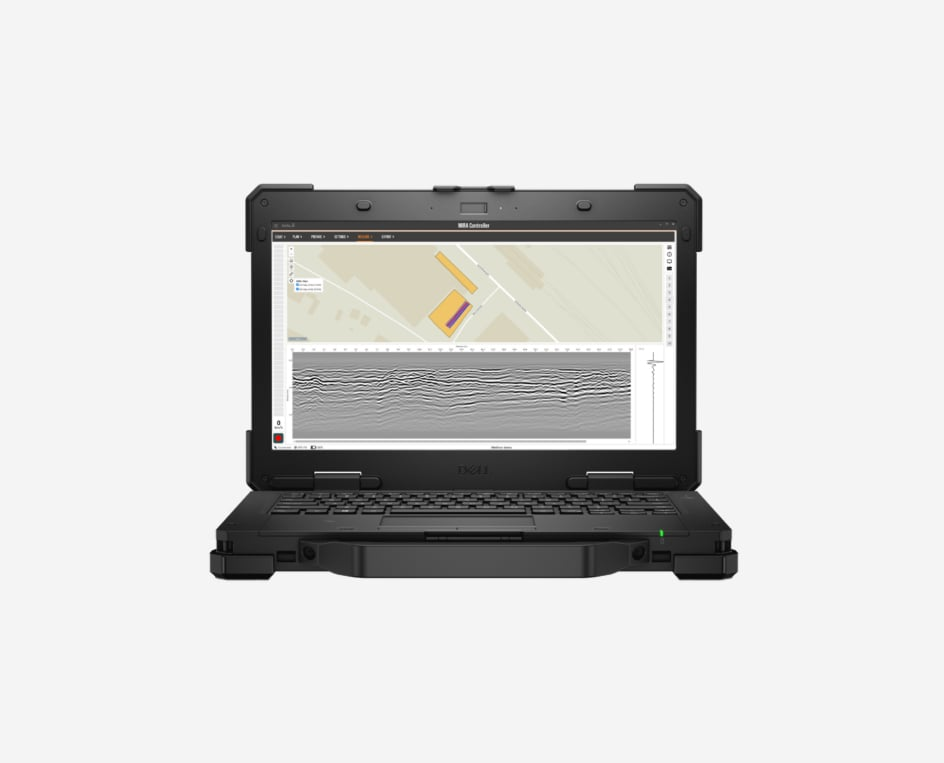

- As you collect swaths, MIRA Controller provides an immediate rendering of depth slices.
- Allows you to quickly assess your investigation area and identify subsurface features.
