Content Meters

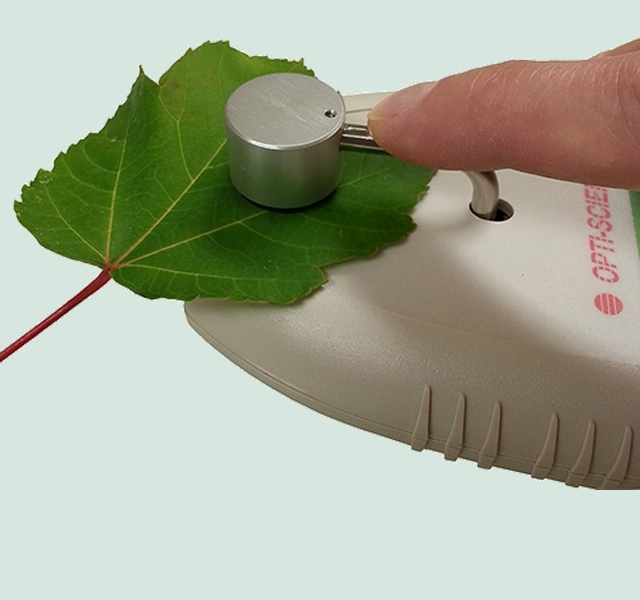

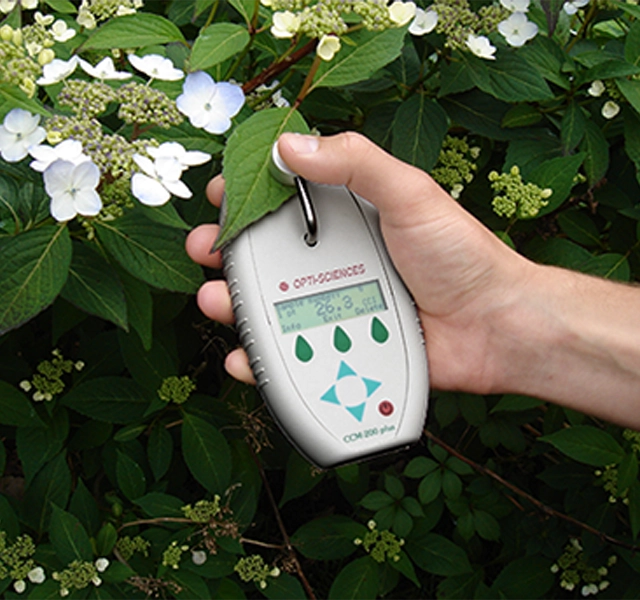

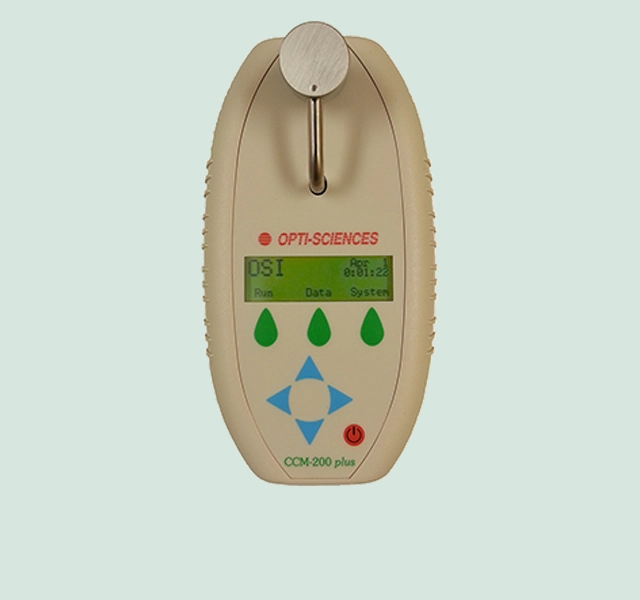

CCM-200
Chlorophyll Content Meter
Proven performance at a great price
The CCM-200 plus Chlorophyll Content Meter is an updated version of the very successful CCM-200 instrument. It is a reliable leaf absorption style meter with over 1,000 research citations. Designed as an affordable solution, the CCM-200 plus provides averaging between 2 to 30 samples for nitrogen management. Non-volatile flash memory stores up to 50,000 measurements.
The CCM-200 plus is designed to be the most repeatable portable chlorophyll content meter available. It incorporates a large measuring area for signal averaging. This approach provides a more reliable reading that takes into account small structure variations that can affect repeatability and reliability when compared to smaller area sampling. Accuracy of measurement is determined by correlation with chemical tests. Results have shown that the CCM-200 is as accurate as any chlorophyll meter on the market. Employing a medical grade strict tolerance LED source insures repeatability and consistent meter to meter readings.
The CCM-200 plus has large on-board memory, storing 50,000 measurements. Users can record months of measurements as well as input their own comment lines without worrying about limited memory or lugging additional equipment such as data loggers or PCs in the field. Data transfer is quick and easy through USB connection.
- Fast, non-destructive measurement at an affordable price
- Cited by more than 1,000 published scientific papers
- User selected sample averaging size from 2-30 measurements for nitrogen management applications
- Data stored in comma delimited files
- Integrated GPS/GLONASS location receiver
- USB port for easy data transfer
- Lightweight, Hand-Held Design Optimized for Field Work
- Displays Chlorophyll Content Index (CCI)
Measured Parameters:
Optical absorbance in two different wavebands: 653nm & 931nm.
GPS location.
Measurement Area:
9.52 mm (3/8″) diameter circle (71 mm2).
Resolution:
.1 CCI unit.
Repeatability:
+/- 1%.
Source:
Custom 2 wavelength LED module.
Detector:
Silicon photodiode.
GPS location:
Built in GPS / GLONASS 12 channel receiver with internal antenna.
Storage Capacity:
Up to 50,000 data measurements.
Data Modes: (3)
Single point, user selectable from 1-30 point averaging, and a statistical 10-30 point protocol that asks to replace data points beyond a 2 sigma standard deviation.
User Interface
128 x 32 pixel graphic display, beep signals, keys for: setup, measurement protocols, diagnostics, data control and user input of alphanumeric comment lines.
Output:
USB removable storage device standard. Comma delimited files.
Temperature Range:
0 – 50oC, non condensing.
Power Source:
9V Alkaline battery.
Auto Off Interval:
4 minutes (no key press or data download).
Size:
152(L) x 82(W) x 25(D) mm.
Weight with battery:
210 g.
Specifications subject to change without notice.
CCM-300
Chlorophyll Content Meter
Chlorophyll Content Meter – works on small & difficult samples & provides a larger reliable measuring range than other instruments
The CCM-300 uses a proven fluorescence ratio technique for chlorophyll content measurement at an affordable price. Readout is directly in chlorophyll content mg/m2, and measurement ratio.
CCM-300 Chlorophyll Content Meter is designed to measure difficult samples. It can be used on conifers, turf grasses, moss, lichen, immature wheat, immature Arabidosis, stems, and petioles, as well as easier samples, like corn and broadleaf plants. The instrument was designed around research done by Gittelson, Bushman, & Lichtenthaler in 1999. The research shows that this method offers a larger reliable measuring range than absorption style meters, provides a ratio that correlates with chemical tests & provides direct readout of chlorophyll content in mg/m2, that is reliable for many plant species. Adjustments to the direct chlorophyll content readout equation are possible for other species.
- Reliable results on very small leaves, stems, petioles, and immature plants
- Chlorophyll content can now be measured from germination through maturity on most plants
- High degree of correlation with chemical tests, even at higher chlorophyll content levels.
- Larger measuring range – reliable measurement from 41 mg/m2 to 675 mg/m2
- Great for nitrogen management applications because it does a better job with well fertilized plants, used as a reference, in management applications.
- Allows on-board averaging of up to 30 measurements for nitrogen management applications
- Integrated GPS/GLONASS location receiver
- USB port for easy data transfer
Measured Parameters:
Relative chlorophyll content in mg/m2.
CFR (Chlorophyll Fluorescence Ratio) – fluorescence emission ratio of intensity at 735nm / 700nm.
GPS location.
Measurement Area:
3 mm diameter circle. Instrument will reliably measure samples that are much smaller than 3 mm.
Resolution:
1 mg/m2 (0.01 CFR).
Source:
460nm blue LED with half bandwidth of 15nm.
Sample probe:
0.9 meter long fiber optic probe.
Detector:
Dual simultaneous wavelength detection at 700nm and 730nm.
GPS location:
Built in GPS / GLONASS 12 channel receiver with internal antenna.
Storage Capacity:
Greater than 350,000 measurements.
Modes:
Single point measurement.
Measurement averaging for 2-30 samples.
Averaging with 2 sigma outlier removal.
Median determination.
User Interface:
240 x 320 pixel color touch screen.
Output:
USB removable storage device standard. Comma delimited files.
Temperature Range:
0 – 50oC, non condensing.
Power Source:
2 rechargeable AA batteries. Charger included. Typical run time is 4-6 hours with freshly charged batteries.
Size:
12 cm x 9 cm x 3 cm.
Weight:
0.8 lbs (350 g).
Components included:
Chlorophyll content meter, fiberoptic, sample clip, battery charger, 4 AA NiMH rechargeable batteries, USB cable, calibration slide, transport case, and manual.
Specifications subject to change without notice.
ACM-200
Anthocyanin Content Meter
Anthocyanin Content Meter.
The ACM-200 plus Anthocyanin Content Meter provides an estimate of anthocyanin content on intact leaves of plants and flowers. The measurement is rapid, nondestructive, and simple to obtain, allowing researchers to gather reliable data that has been shown to correlate to chemical testing.
Note: It should not be used with samples that have high chlorophyll content.
An affordable instrument that works with leaves and flowers. Works well with samples that do not have a high chlorophyll content (van den Berg A.K., Perkins T.D. 2005), (Morris J.B., Wang M.L. 2007). One handed operation. Averaging options.
- Stores up to 50,000 measurements
- Displays Anthocyanin Content Index
- Ability to calculate sample averages (from 2-30)
- Integrated GPS/GLONASS location receiver
- Data is stored in comma delimited files
- USB port for easy data transfer
- Lightweight, hand-held design, optimized for field work
- Graphic data display
Measured Parameters:
Optical absorbence in two different wavebands: 530nm & 931nm.
GPS location.
Measurement Area:
3/8″ diameter circle, (0.71 cm2).
Resolution:
+/- 0.1 ACI Unit.
Repeatability:
+/- 1%.
Source:
Green LED (peak at 530nm).
Infrared LED (peak at 931nm).
Detector:
Silicon photodiode.
GPS location:
Built in GPS / GLONASS 12 channel receiver with internal antenna.
Storage Capacity:
Up to 50,000 data measurements.
Data Modes:
Single point measurement.
2 to 30 point averaging.
10 to 30 point averaging with elimination of fliers outside a two sigma standard deviation.
User Interface:
128 x 32 pixel graphic display, beep signals, keys for: setup, measurement protocols, diagnostics, data control and user input of alphanumeric comment lines.
Output:
USB removable storage device standard. Comma delimited files.
Temperature Range:
0 – 50oC, non condensing.
Power Source:
9V Alkaline Battery.
Auto Off Interval:
4 minutes (no key press or data download).
Size:
152(L) x 82(W) x 25(D) mm.
Weight with battery:
210 g.
Specifications subject to change without notice.
MPM-100
Multi-Pigment-Meter
Multiple wavelength pigment meter
Field portable pigment meter using optical transmittance and fluorescence to characterize intact leaves. Five narrow band light sources are independently controlled for precise and repeatable readings. Three are used exclusively to excite fluorescence, the remaining two are for transmittance. Calculations can be modified for custom parameter measurements.
The MPM-100 is a field portable pigment measuring instrument. It can be used on any thin, flat material to measure both optical transmittance and fluorescence characteristics. The sample measuring area is 9.5mm in diameter. The top measuring head contains five light sources and a filtered detector. Three of the sources are dedicated to fluorescence excitation and two are for transmittance. The bottom measuring head contains a broadband detector for transmittance measurements. The detector filter is set for the target fluorophore.
User defined formulas calculate final values. This allows for custom tests to be developed and implemented. The instrument includes a high performance data logger, 3.2″ touch sensitive color LCD screen, USB connectivity, built in GPS receiver, and internal data storage.
When a test is started, three source LEDs are flashed and the resulting fluorescence is recorded from the top sample head. Flashes of light are very brief to minimize any effect on the sample. Transmittance measurements are then made by flashing the two remaining LEDs and recording the signal present on the bottom sample head.
Fluorescence LEDs and detector are factory calibrated for a normalized response. Relative changes between fluorescence channels are minimized because the fluorescence is excited and detected on the same side of the sample resulting in no movement between the sources and detector.
- Direct measurement of fluorescence induced by three separate excitation sources
- Direct measurement of transmittance at two wavelengths
- Standard model measures chlorophyll content, anthocyanin content flavonol content and nitrogen flavonol index
- 9.5mm diameter measurement area
- Measurement indicator for top or bottom of leaf
- Integrated GPS/GLONASS location receiver
- USB port for easy data transfer
- Source and detection wavelength options available
- Color touch screen
- Uses standard rechargeable AA batteries
- User programmable for custom parameter measurements
- Built-in storage for thousands of measurements
Measured parameters:
Three fluorescence signals and two transmittance signals. Data can be processed and displayed by user defined programming formulas.
GPS location.
Fluorescence sources:
LED. Three channels available. Default values are 375nm, 525nm, and 660nm. Other wavelengths from 260nm to 950nm available.
Fluorescence detection:
Single channel silicone photo diode. Default filter installed for 720nm to 900nm range. Custom filters available from 400nm to 900nm. available.
Transmittance sources:
LED. Two channels available. Default values are 720nm and 850nm. Other wavelengths available from 405nm to 950nm available.
Transmittance detection:
Single channel silicon photo diode. Default broadband diffuser installed usable from 405nm to 950nm. Custom window options available.
GPS:
Built in GPS / GLONASS 12 channel receiver with internal antenna.
User Interface:
240 x 320 pixel color touch screen.
Storage Capacity:
Greater than 300,000 measurements.
Output:
USB removable storage device standard. Comma delimited files.
Temperature Range:
0 – 50oC, non condensing.
Power Source:
2 Rechargeable NiMH AA batteries. Charger included. Typical run time is 4 hours with freshly charged batteries.
Size:
78mm x 50mm x 180mm.
Weight:
270g with batteries.
Components included:
Meter, battery charger, 4 AA NiMH rechargeable batteries, USB cable, stylus, carrying case, and manual.
Specifications subject to change without notice.
