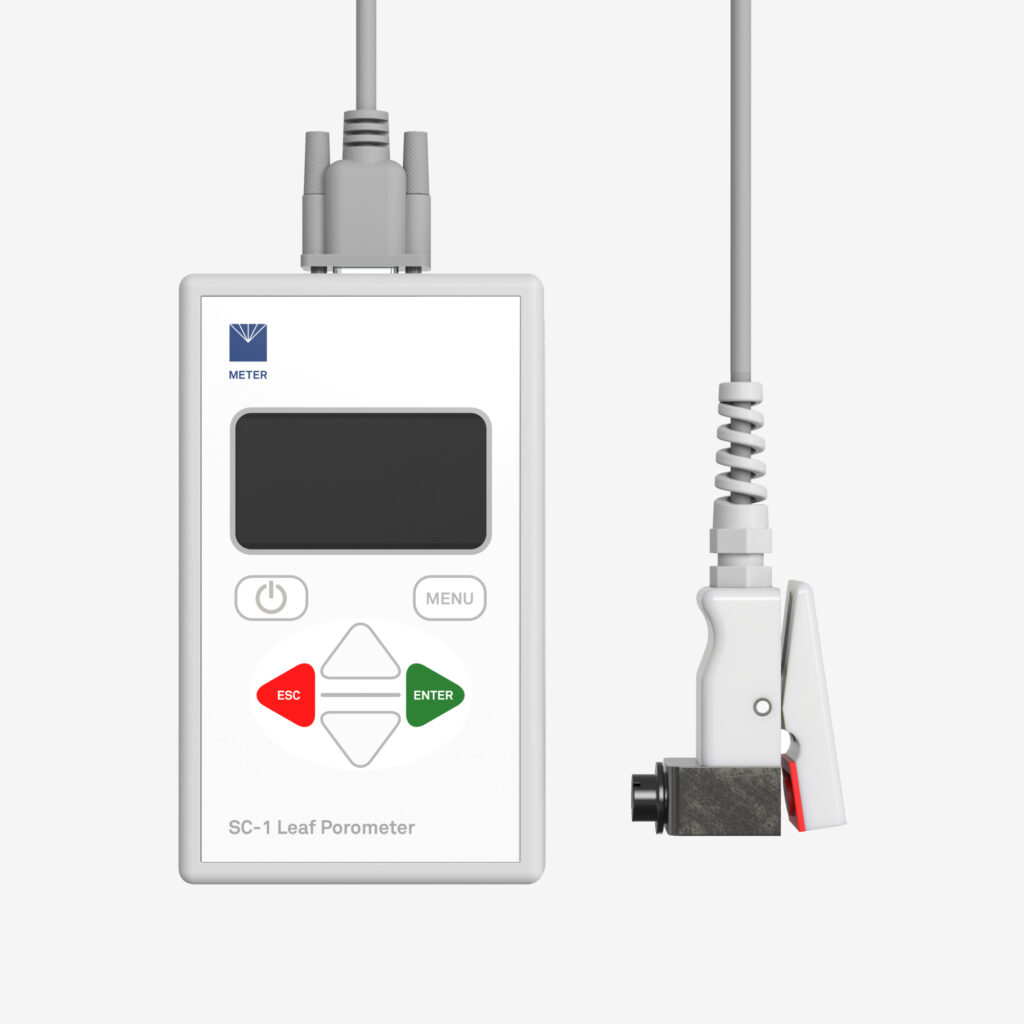

SC-1 Leaf Porometer
Stomatal Conductance
Quick measurements. Easy-to-use engineering. Low cost in the short and the long run. The SC-1’s breakthrough steady-state technology makes it the best for measuring stomatal conductance.
- Easy stomatal conductance measurements
- High speed results (readings in 30 seconds)
- Straightforward calibration and no moving parts
Stomatal conductance is complicated. Measuring it doesn’t have to be
Most measurements in the soil-plant-atmosphere continuum are fairly straightforward. Measuring stomatal conductance is not. And since stomatal conductance can’t be predicted from theory and must be measured, you need an instrument that’s easy to use. You need the SC-1.
Complex science in a simplified package
Backed by solid scientific theory and 15 years of research, the SC-1 is designed to provide you with a simple solution to a complex problem. By measuring vapor flux from the leaf through the stomates, it enables you to tell the difference between transpiring leaves and ones that have shut down. High-speed results, ease of use, and a low cost mean more measurements in less time without blowing your budget.
Accurate readings in seconds
Not only can you make accurate leaf conductance measurements in only thirty seconds, but you can calibrate the SC-1 in just a few minutes. After calibrating, simply clip it on the leaves you are interested in and start measuring stomatal conductance.
Engineered for reliability
Quick measurements. Easy-to-use engineering. Low cost in the short and the long run. Save yourself time, hassle, and money with the leaf porometer that does all three. The SC-1’s breakthrough steady-state technology makes it the number one choice for stomatal conductance measurements.
Field-ready solution
The SC-1 is simpler to use for a variety of reasons. It’s lightweight, so you won’t get fatigued carrying it around in the field (or around your neck). What’s more, breakthrough steady-state technology means it doesn’t have any moving parts, making it easy and reliable to use. Plus, calibrations are simple to do, and readings can be displayed as either leaf vapor conductance or resistance and saved for downloading later (USB cable and utility software included).
Low maintenance device that won’t break the bank
There’s low cost, and then there’s lifetime low cost. The SC-1 is affordable to begin with. And because it’s also low maintenance, you won’t have to keep dipping into your budget to get it repaired when the pump breaks or a seal goes bad. These combine to save you money in both the short and long term.
Feature summary
- Save and download data (USB cable and download utility software included)
- Accurate
- High speed results (readings in 30 seconds)
- Straightforward calibration
- Affordable
- No moving parts
- Lightweight, easy to carry
Measurement Specifications
Stomatal Conductance
Range: 0 – 1000 mmol/(m2s)
Resolution: 0.1 mmol/(m2s)
Accuracy: ±10% of measurement from 0 to 500 mmol/(m2s)
NOTE:The SC-1 can measure higher than 500 mmol/(m2s) and detect relative stomatal conductance change in the high range, but absolute accuracy becomes unverifiable past 500 mmol/(m2s).
Measurement Time
30 s
Physical Specifications
Dimensions
Length: 15.8 cm (6.2 in)
Width: 9.5 cm (3.8 in)
Height: 3.3 cm (1.3 in)
Sensor Aperture Diameter
6.35 mm (0.25 in)

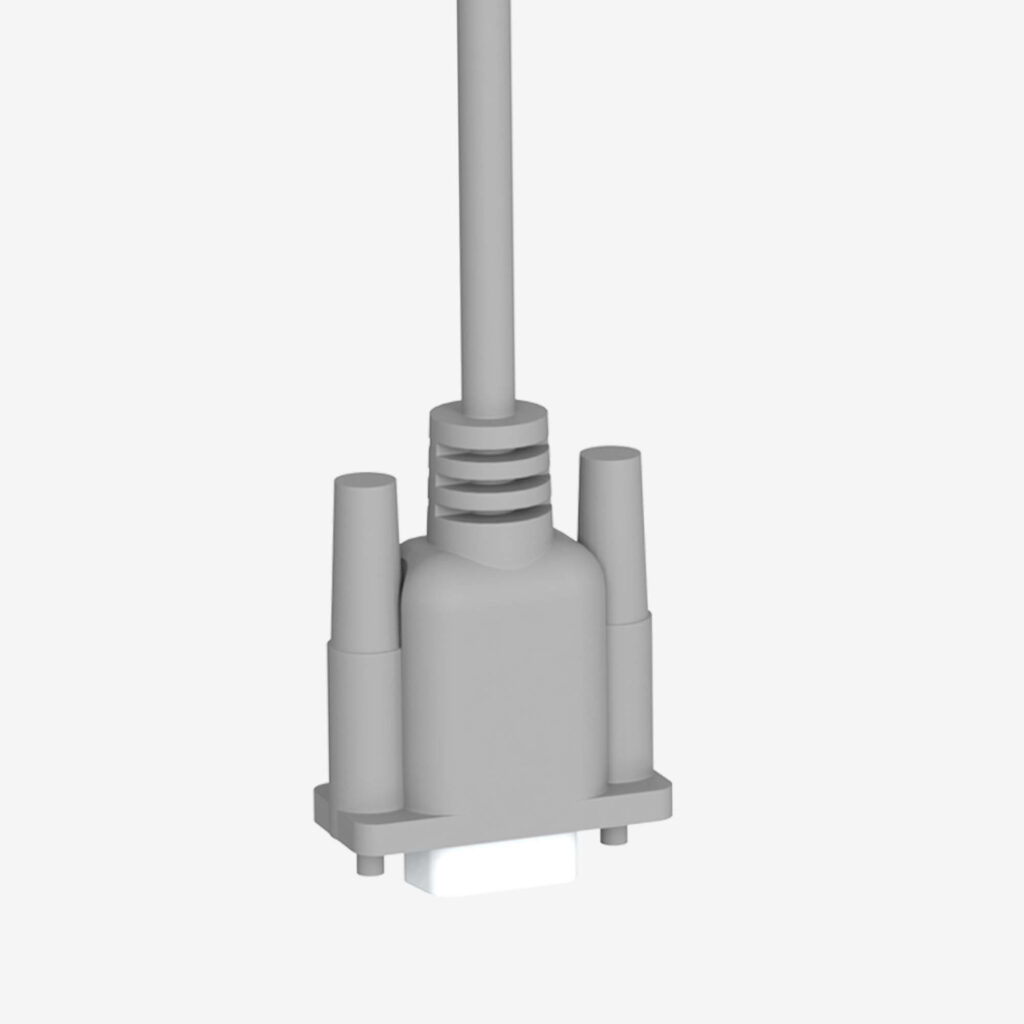

Sensor Cable Length
1.2 m (4 ft)
Universal Power
4 AA batteries (not included)
Data Storage
4,095 measurements in flash memory
Battery Life
2 years (battery drain in sleep mode is <50 μA)
Sensor Head Dimensions
Length: 12.0 cm (4.7 in)
Width: 2.5 cm (1.0 in)
Height: 5.5 cm (2.2 in)
Operating Temperature Range
Minimum: 5 °C
Maximum: 40 °C
Operating Relative Humidity Range
Minimum: 1 %
Maximum: 100 % , with desiccant chamber
Connector Types
Serial-to-USB
Other
Compliance
EM ISO/IEC 17050:2010 (CE Mark)
GSA
