PYR Sensor
PYR Sensor

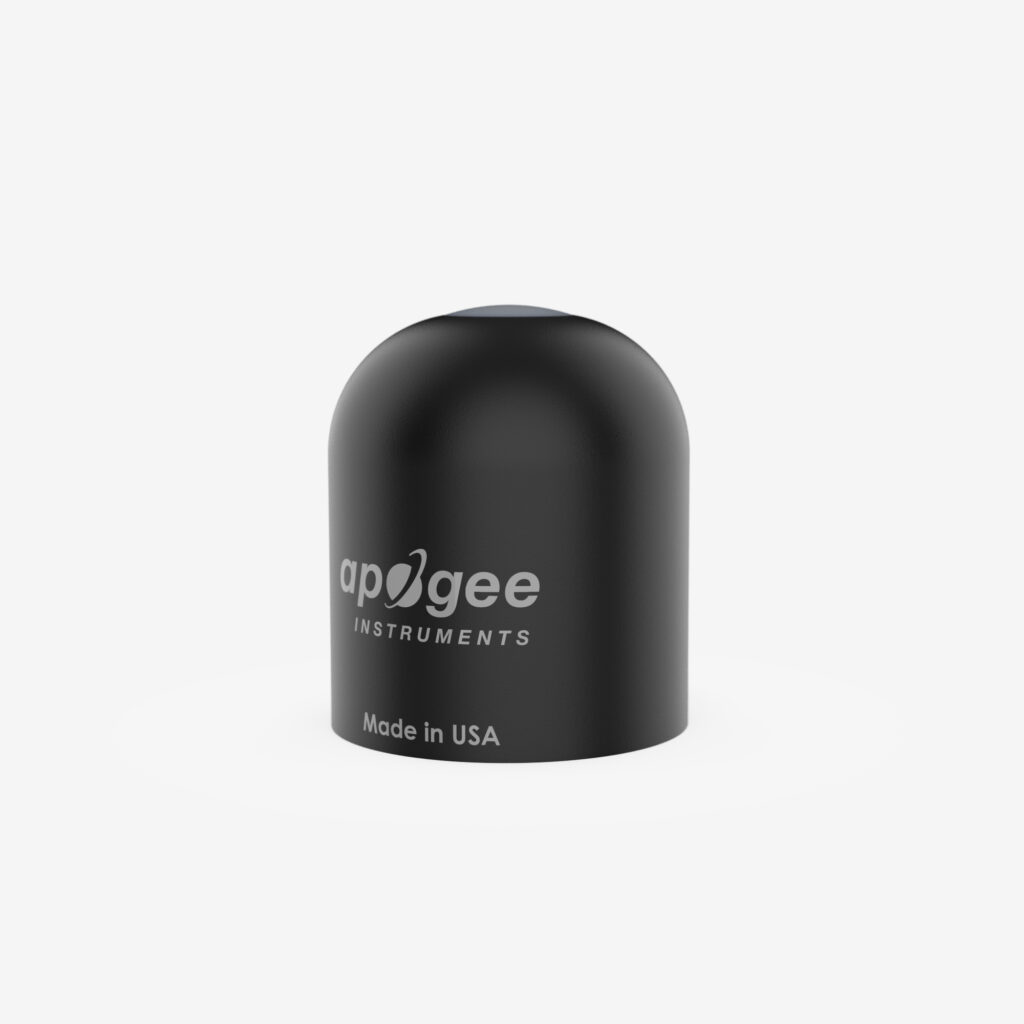

Easy-To-Use Pyranometer
The PYR solar radiation sensor is designed for continuous outdoor use and is completely waterproof and submersible.
- Accurate, easy-to-use pyranometer
- Measure total solar radiation
- Weatherproof for long-term use
Measure total incoming shortwave solar radiation
The PYR total solar radiation sensor (pyranometer) measures the solar radiation flux density (in watts per meter squared) from an upward-facing field of view of 180 degrees.
Weatherproof for long-term use
The sensor is designed for continuous outdoor use and is completely waterproof and submersible.
Accuracy

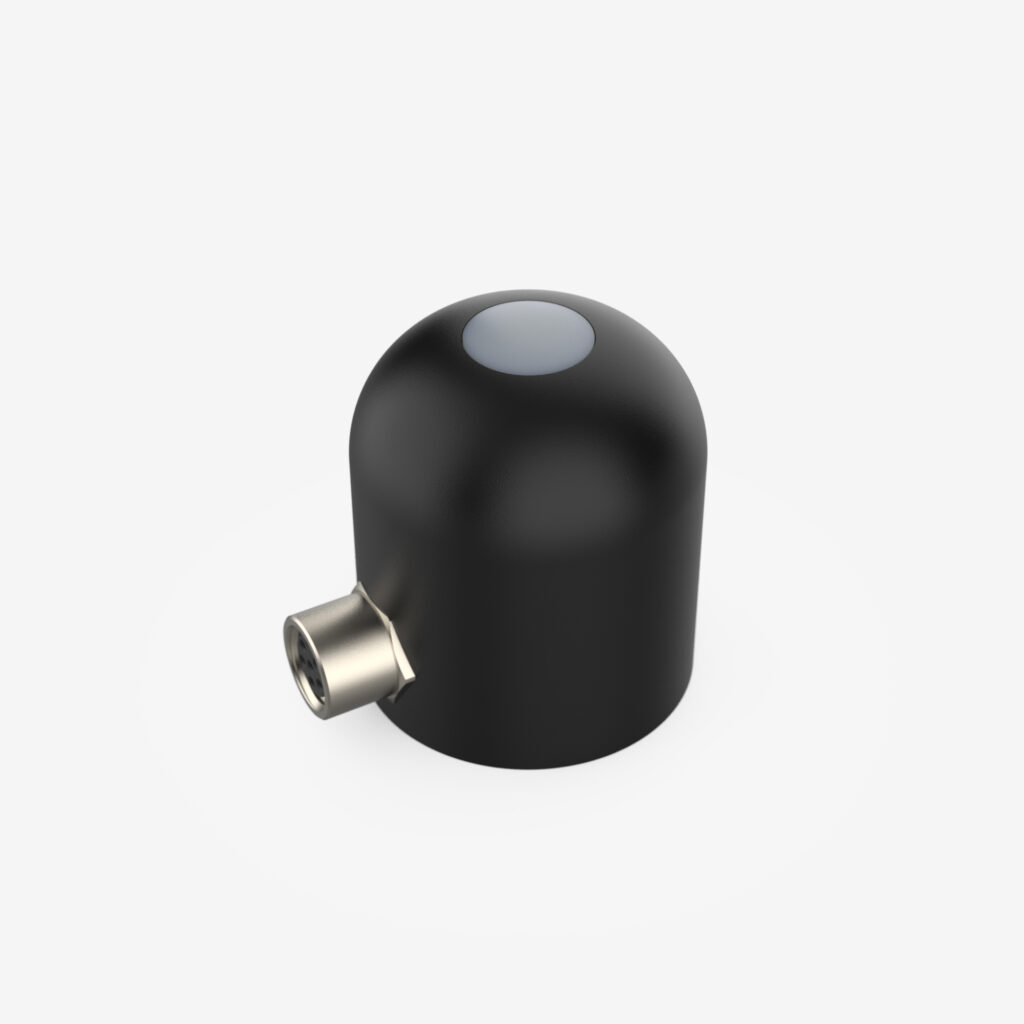

Accurate measurement depends on the cleanliness of the lens and installation of the sensor at horizontal (180°). The sensor head has a domed diffusion disk to reduce the need for frequent cleaning. A leveling plate is included for accurate installation.
Measurement Specifications
Spectral range
360–1120 nm
Accuracy
±5%
Resolution
N/A
Field of view
Hemisherical, 180°
Measurement range
0 to 1,750 W m-2 (0–350 mV)
Calibrations and conversions
Sensors are calibrated for outside and upward-facing use
5.0 W m-2 per mV
Communication Specifications
Data Logger Compatibility
METER Em50/50G, EM60 series, ZL6 series, ZSC, ProCheck
Physical Specifications
Operating environment
-40 to 60 °C
Cable length
5m
Cable connector types
3.5 mm stereo plug
Sensor dimensions
2.4 cm x 2.75 cm (0.95 in x 1.1 in)
Other
Compliance
Warranty
One year, parts and labor
